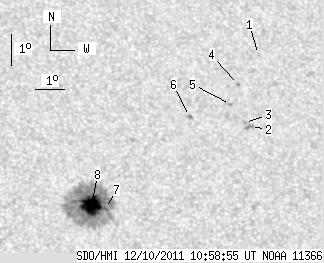

SDO HMI 2011-12-10 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.12 | 172.45 | 15.59 | 95.93 | 18.16 | 61.79 | 20.19 | 313.97 | 0.4572 | -1129.6 | -435.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.56 | 22.76 | 67.92 | 26.32 | 313.70 | 0.5678 | -580.0 | -462.5 | |
| 0.00 | 3.75 | 0.00 | 2.20 | 20.46 | 67.19 | 25.59 | 311.15 | 0.5396 | -796.0 | -729.5 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 20.59 | 67.00 | 25.41 | 311.53 | 0.5387 | -806.0 | -672.8 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 21.79 | 67.02 | 25.42 | 313.28 | 0.5496 | -757.0 | -625.4 | |
| 0.00 | 1.53 | 0.00 | 0.90 | 21.16 | 66.62 | 25.02 | 312.78 | 0.5395 | -793.0 | -567.2 | |
| 0.00 | 1.87 | 0.00 | 1.09 | 20.77 | 65.13 | 23.53 | 313.87 | 0.5199 | -691.0 | -642.1 | |
| 1.28 | 162.14 | 0.71 | 89.87 | 17.88 | 61.88 | 20.28 | 313.34 | 0.4556 | -708.2 | -418.0 | |
| 26.84 | -7.00 | 14.88 | -7.00 | 17.97 | 61.43 | 19.83 | 314.11 | 0.4514 | -1307.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
