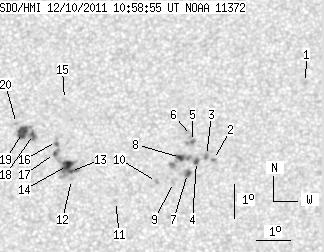

SDO HMI 2011-12-10 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.31 | 89.62 | 14.68 | 44.89 | 7.84 | 43.47 | 1.87 | 347.71 | 0.1501 | 193.7 | 64.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.82 | 9.97 | 49.36 | 7.77 | 323.19 | 0.2231 | 845.0 | 651.9 | |
| 0.00 | 1.79 | 0.00 | 0.90 | 7.67 | 46.56 | 4.96 | 328.19 | 0.1633 | -1103.0 | -879.4 | |
| 0.00 | 2.90 | 0.00 | 1.45 | 7.79 | 46.35 | 4.75 | 329.65 | 0.1632 | -1013.0 | -820.0 | |
| 2.39 | 16.27 | 1.20 | 8.16 | 7.61 | 46.05 | 4.45 | 330.70 | 0.1580 | -952.8 | -923.0 | |
| 0.43 | 3.49 | 0.21 | 1.75 | 8.20 | 45.93 | 4.34 | 333.07 | 0.1661 | -977.0 | -851.1 | |
| 0.00 | 1.96 | 0.00 | 0.98 | 8.38 | 45.91 | 4.31 | 333.71 | 0.1687 | -703.0 | -537.5 | |
| 2.81 | 4.77 | 1.41 | 2.39 | 7.25 | 45.78 | 4.18 | 331.09 | 0.1503 | -1081.7 | -830.7 | |
| 3.15 | -4.00 | 1.58 | -4.00 | 7.73 | 45.57 | 3.98 | 333.73 | 0.1560 | -1150.5 | 999999 | |
| 0.00 | 1.87 | 0.00 | 0.94 | 6.98 | 45.36 | 3.76 | 332.74 | 0.1428 | -928.0 | -665.3 | |
| 0.00 | 2.13 | 0.00 | 1.07 | 7.01 | 44.85 | 3.25 | 336.05 | 0.1394 | -937.0 | -777.4 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 6.42 | 43.63 | 2.03 | 343.18 | 0.1223 | -897.0 | -702.9 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 7.07 | 42.32 | 0.73 | 354.38 | 0.1291 | 852.0 | 663.6 | |
| 0.85 | 26.75 | 0.43 | 13.37 | 7.31 | 42.29 | 0.70 | 354.78 | 0.1332 | 1148.4 | 868.9 | |
| 6.39 | -13.00 | 3.19 | -13.00 | 7.49 | 42.20 | 0.61 | 355.55 | 0.1361 | 1185.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 9.46 | 42.12 | 0.52 | 356.96 | 0.1701 | 727.0 | 495.2 | |
| 0.00 | 3.32 | 0.00 | 1.66 | 8.20 | 41.88 | 0.28 | 358.12 | 0.1482 | 960.0 | 794.9 | |
| 1.36 | -13.00 | 0.68 | -13.00 | 7.84 | 41.82 | 0.22 | 358.45 | 0.1420 | 995.2 | 999999 | |
| 2.39 | 18.32 | 1.20 | 9.18 | 8.41 | 41.19 | -0.41 | 2.65 | 0.1519 | 1111.5 | 836.3 | |
| 9.54 | -18.00 | 4.78 | -18.00 | 8.47 | 40.86 | -0.73 | 4.76 | 0.1533 | 1056.8 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 8.74 | 40.68 | -0.91 | 5.74 | 0.1582 | 741.0 | 659.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
