SDO HMI 2011-12-10 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.56 | 319.73 | 65.29 | 425.66 | -23.00 | 107.46 | 66.41 | 245.25 | 0.9305 | 558.1 | 246.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

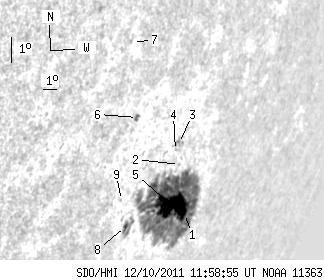

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.56 | 297.50 | 3.64 | 398.71 | -23.27 | 108.91 | 67.86 | 245.19 | 0.9390 | -274.0 | 260.7 | |
| 0.00 | 0.68 | 0.00 | 0.89 | -21.71 | 106.97 | 65.92 | 246.54 | 0.9263 | 529.0 | 490.8 | |
| 0.00 | 4.00 | 0.00 | 5.06 | -21.04 | 106.31 | 65.26 | 247.15 | 0.9215 | 295.0 | 346.4 | |
| 0.00 | 0.68 | 0.00 | 0.86 | -21.27 | 106.27 | 65.22 | 246.91 | 0.9215 | 256.0 | 289.8 | |
| 44.30 | -1.00 | 59.59 | -1.00 | -23.02 | 107.56 | 66.51 | 245.25 | 0.9312 | 696.4 | 999999 | |
| 0.00 | 2.81 | 0.00 | 3.12 | -20.23 | 102.76 | 61.72 | 247.42 | 0.8968 | -668.0 | -541.4 | |
| 0.00 | 0.60 | 0.00 | 0.62 | -17.89 | 100.98 | 59.93 | 249.69 | 0.8802 | -476.0 | -508.1 | |
| 1.70 | 13.03 | 2.06 | 15.90 | -23.70 | 104.66 | 63.61 | 244.00 | 0.9143 | -217.1 | 63.1 | |
| 0.00 | 0.43 | 0.00 | 0.50 | -22.87 | 103.66 | 62.61 | 244.71 | 0.9066 | -206.0 | -168.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
