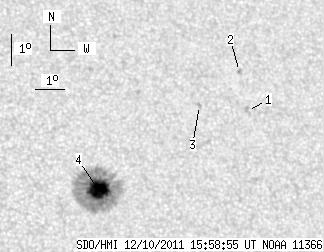

SDO HMI 2011-12-10 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.91 | 159.69 | 15.21 | 90.47 | 18.17 | 61.68 | 22.83 | 310.64 | 0.4875 | -1201.5 | -421.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.41 | 0.00 | 2.05 | 20.52 | 67.00 | 28.15 | 308.75 | 0.5687 | -785.0 | -703.7 | |
| 0.00 | 2.13 | 0.00 | 1.29 | 21.75 | 66.97 | 28.12 | 310.56 | 0.5784 | -762.0 | -575.2 | |
| 0.00 | 2.13 | 0.00 | 1.26 | 20.67 | 65.32 | 26.47 | 310.57 | 0.5513 | -632.0 | -486.7 | |
| 26.91 | 152.02 | 15.21 | 85.87 | 18.02 | 61.42 | 22.57 | 310.69 | 0.4833 | -1295.3 | -409.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
