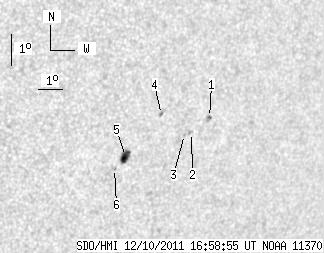

SDO HMI 2011-12-10 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.41 | 16.86 | 5.10 | 11.69 | -18.79 | 79.43 | 41.13 | 242.88 | 0.7019 | -27.3 | 276.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 2.38 | 0.37 | 1.71 | -17.91 | 81.75 | 43.46 | 245.08 | 0.7240 | 680.2 | 545.1 | |
| 0.00 | 1.28 | 0.00 | 0.91 | -18.38 | 81.13 | 42.83 | 244.21 | 0.7189 | 640.0 | 610.8 | |
| 0.00 | 0.85 | 0.00 | 0.60 | -18.44 | 80.85 | 42.55 | 244.01 | 0.7161 | 664.0 | 560.8 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -17.82 | 79.70 | 41.41 | 244.34 | 0.7009 | 716.0 | 621.9 | |
| 6.90 | 9.20 | 4.73 | 6.31 | -19.13 | 78.60 | 40.30 | 242.06 | 0.6941 | -787.0 | -555.2 | |
| 0.00 | 1.79 | 0.00 | 1.22 | -19.51 | 78.26 | 39.96 | 241.38 | 0.6920 | 495.0 | 399.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
