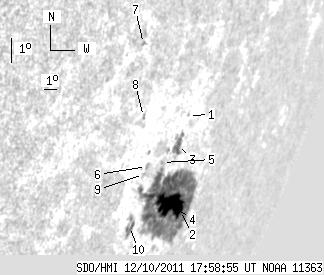

SDO HMI 2011-12-10 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.69 | 286.80 | 61.59 | 435.57 | -22.93 | 107.31 | 69.57 | 245.79 | 0.9475 | 520.6 | 266.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 1.10 | -20.22 | 106.22 | 68.47 | 248.50 | 0.9397 | -150.0 | -100.8 | |
| 2.90 | 252.74 | 4.77 | 388.55 | -23.23 | 108.77 | 71.03 | 245.67 | 0.9550 | -304.0 | 281.6 | |
| 0.00 | 13.54 | 0.00 | 19.47 | -21.13 | 106.23 | 68.49 | 247.54 | 0.9405 | 472.0 | 410.5 | |
| 36.79 | -2.00 | 56.82 | -2.00 | -23.04 | 107.47 | 69.73 | 245.70 | 0.9486 | 661.7 | 999999 | |
| 0.00 | 1.79 | 0.00 | 2.50 | -21.71 | 105.42 | 67.68 | 246.82 | 0.9365 | 391.0 | 338.3 | |
| 0.00 | 2.30 | 0.00 | 3.06 | -21.84 | 104.23 | 66.48 | 246.50 | 0.9297 | 311.0 | 303.7 | |
| 0.00 | 1.62 | 0.00 | 1.87 | -17.98 | 100.99 | 63.25 | 250.16 | 0.9048 | -482.0 | -420.8 | |
| 0.00 | 2.04 | 0.00 | 2.53 | -20.26 | 102.63 | 64.89 | 247.94 | 0.9183 | -453.0 | -460.2 | |
| 0.00 | 1.19 | 0.00 | 1.59 | -22.09 | 104.22 | 66.48 | 246.23 | 0.9300 | 310.0 | 279.3 | |
| 0.00 | 10.81 | 0.00 | 14.90 | -23.76 | 104.73 | 66.99 | 244.54 | 0.9346 | -314.0 | -39.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
