SDO HMI 2011-12-10 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.75 | 423.81 | 59.55 | 308.75 | -17.35 | 352.48 | -44.71 | 113.70 | 0.7358 | 598.7 | 241.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

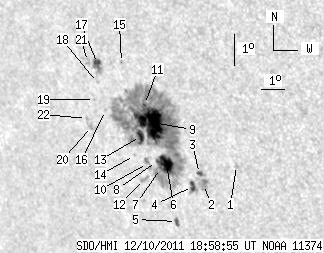

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 1.12 | -18.32 | 355.76 | -41.43 | 116.32 | 0.7032 | -738.0 | -496.8 | |
| 0.00 | 8.00 | 0.00 | 5.72 | -18.91 | 354.19 | -43.00 | 116.42 | 0.7228 | -442.0 | -445.1 | |
| 2.30 | 3.24 | 1.64 | 2.31 | -18.57 | 354.13 | -43.07 | 115.94 | 0.7222 | 623.4 | 300.4 | |
| 4.17 | 7.83 | 3.00 | 5.64 | -18.97 | 353.69 | -43.50 | 116.29 | 0.7284 | 601.3 | 145.2 | |
| 2.64 | 3.58 | 1.95 | 2.64 | -20.07 | 352.62 | -44.57 | 117.26 | 0.7439 | -704.7 | -589.5 | |
| 13.62 | 368.30 | 9.92 | 267.96 | -18.25 | 352.80 | -44.39 | 114.99 | 0.7354 | 1003.0 | 310.1 | |
| 0.26 | -6.00 | 0.19 | -6.00 | -18.41 | 352.49 | -44.71 | 115.07 | 0.7393 | 334.3 | 999999 | |
| 0.60 | -6.00 | 0.44 | -6.00 | -18.19 | 352.38 | -44.81 | 114.75 | 0.7396 | 469.3 | 999999 | |
| 45.73 | -6.00 | 33.23 | -6.00 | -16.98 | 352.55 | -44.65 | 113.24 | 0.7338 | 1033.0 | 999999 | |
| 0.00 | 4.85 | 0.00 | 3.58 | -18.25 | 351.97 | -45.23 | 114.67 | 0.7443 | 424.0 | 330.0 | |
| 1.36 | -6.00 | 0.99 | -6.00 | -16.43 | 352.41 | -44.79 | 112.46 | 0.7335 | 618.2 | 999999 | |
| 0.00 | 3.83 | 0.00 | 2.85 | -18.75 | 351.66 | -45.53 | 115.20 | 0.7492 | 453.0 | 271.1 | |
| 6.30 | -6.00 | 4.64 | -6.00 | -17.41 | 351.93 | -45.26 | 113.58 | 0.7419 | 583.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -18.00 | 351.47 | -45.72 | 114.17 | 0.7487 | 271.0 | 185.1 | |
| 0.00 | 1.02 | 0.00 | 0.75 | -15.14 | 351.77 | -45.42 | 110.54 | 0.7366 | -560.0 | -435.2 | |
| 0.00 | 0.68 | 0.00 | 0.51 | -16.61 | 350.63 | -46.57 | 112.09 | 0.7533 | -274.0 | -219.8 | |
| 4.77 | 8.94 | 3.55 | 6.66 | -15.17 | 350.70 | -46.49 | 110.25 | 0.7484 | -592.5 | -475.2 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -15.75 | 350.53 | -46.66 | 110.95 | 0.7519 | -452.0 | -400.0 | |
| 0.00 | 0.68 | 0.00 | 0.51 | -16.27 | 350.24 | -46.96 | 111.53 | 0.7565 | -614.0 | -585.5 | |
| 0.00 | 4.51 | 0.00 | 3.44 | -17.10 | 349.83 | -47.36 | 112.46 | 0.7632 | -753.0 | -615.3 | |
| 0.00 | 3.49 | 0.00 | 2.62 | -15.10 | 350.27 | -46.92 | 110.04 | 0.7529 | -594.0 | -572.5 | |
| 0.00 | 1.53 | 0.00 | 1.17 | -16.85 | 349.68 | -47.51 | 112.10 | 0.7640 | -709.0 | -552.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
