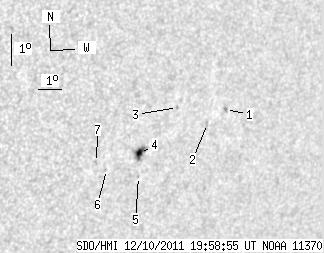

SDO HMI 2011-12-10 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.32 | 14.81 | 2.33 | 10.49 | -18.95 | 79.06 | 42.43 | 243.26 | 0.7167 | -65.5 | -128.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 1.25 | -17.85 | 81.81 | 45.17 | 245.83 | 0.7423 | 730.0 | 590.9 | |
| 0.00 | 1.02 | 0.00 | 0.75 | -18.29 | 81.16 | 44.52 | 245.02 | 0.7369 | 662.0 | 498.3 | |
| 0.00 | 1.19 | 0.00 | 0.85 | -17.79 | 79.71 | 43.07 | 245.09 | 0.7193 | 754.0 | 573.9 | |
| 3.32 | 8.60 | 2.33 | 6.04 | -19.23 | 78.54 | 41.91 | 242.69 | 0.7121 | -822.7 | -597.1 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -19.95 | 78.73 | 42.10 | 241.83 | 0.7172 | 495.0 | 358.9 | |
| 0.00 | 0.34 | 0.00 | 0.24 | -19.73 | 77.32 | 40.68 | 241.45 | 0.7009 | -489.0 | -421.2 | |
| 0.00 | 1.19 | 0.00 | 0.82 | -19.51 | 76.84 | 40.20 | 241.51 | 0.6947 | -781.0 | -645.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
