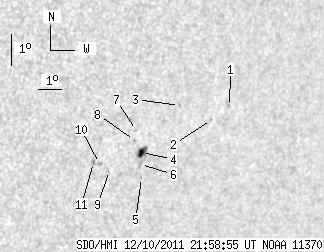

SDO HMI 2011-12-10 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.58 | 20.68 | 2.56 | 14.78 | -19.15 | 78.47 | 42.93 | 243.24 | 0.7229 | -29.1 | -137.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.64 | -17.80 | 81.90 | 46.37 | 246.33 | 0.7548 | 700.0 | 600.0 | |
| 0.00 | 0.85 | 0.00 | 0.63 | -18.20 | 81.23 | 45.70 | 245.58 | 0.7490 | 583.0 | 417.8 | |
| 0.00 | 1.02 | 0.00 | 0.74 | -17.77 | 79.68 | 44.15 | 245.56 | 0.7309 | 550.0 | 493.5 | |
| 3.58 | 8.94 | 2.56 | 6.40 | -19.24 | 78.51 | 42.98 | 243.16 | 0.7237 | -717.7 | -392.0 | |
| 0.00 | 0.34 | 0.00 | 0.25 | -20.02 | 78.78 | 43.24 | 242.25 | 0.7297 | 612.0 | 508.0 | |
| 0.00 | 2.55 | 0.00 | 1.83 | -19.61 | 78.59 | 43.06 | 242.71 | 0.7261 | -37.0 | -4.0 | |
| 0.00 | 0.85 | 0.00 | 0.60 | -18.55 | 78.08 | 42.55 | 243.88 | 0.7164 | 632.0 | 467.4 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -18.86 | 78.09 | 42.56 | 243.47 | 0.7177 | 459.0 | 328.1 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -19.80 | 77.34 | 41.80 | 241.89 | 0.7134 | -548.0 | -495.4 | |
| 0.00 | 1.87 | 0.00 | 1.31 | -19.59 | 76.85 | 41.31 | 241.95 | 0.7071 | -660.0 | -595.8 | |
| 0.00 | 1.70 | 0.00 | 1.18 | -19.56 | 76.59 | 41.05 | 241.87 | 0.7041 | -819.0 | -642.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
