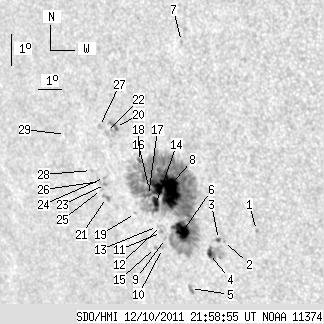

SDO HMI 2011-12-10 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.79 | 432.13 | 59.36 | 306.36 | -17.30 | 352.36 | -43.17 | 114.20 | 0.7186 | 629.7 | 247.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-10 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.75 | -18.28 | 355.84 | -39.69 | 117.05 | 0.6833 | -729.0 | -495.2 | |
| 0.00 | 1.70 | 0.00 | 1.18 | -18.62 | 354.39 | -41.14 | 116.83 | 0.7011 | 527.0 | 374.4 | |
| 1.62 | 2.04 | 1.12 | 1.42 | -18.56 | 354.20 | -41.33 | 116.66 | 0.7029 | 723.0 | 554.4 | |
| 3.15 | 17.63 | 2.21 | 12.31 | -18.99 | 353.69 | -41.84 | 117.01 | 0.7104 | 559.8 | -210.8 | |
| 0.00 | 3.15 | 0.00 | 2.27 | -20.08 | 352.53 | -43.01 | 117.93 | 0.7274 | -895.0 | -721.8 | |
| 13.97 | 374.05 | 9.90 | 264.81 | -18.30 | 352.76 | -42.77 | 115.70 | 0.7178 | 1053.2 | 337.8 | |
| 0.00 | 1.02 | 0.00 | 0.69 | -12.49 | 354.18 | -41.36 | 108.21 | 0.6815 | 507.0 | 404.7 | |
| 52.29 | -6.00 | 36.98 | -6.00 | -17.00 | 352.47 | -43.06 | 113.84 | 0.7162 | 1044.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.92 | -18.52 | 351.97 | -43.57 | 115.65 | 0.7273 | 218.0 | 141.5 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -18.83 | 351.74 | -43.80 | 115.97 | 0.7310 | 192.0 | 160.8 | |
| 0.00 | 1.53 | 0.00 | 1.10 | -18.33 | 351.85 | -43.68 | 115.36 | 0.7279 | 443.0 | 332.6 | |
| 0.00 | 1.02 | 0.00 | 0.73 | -18.11 | 351.92 | -43.61 | 115.10 | 0.7263 | 442.0 | 358.6 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -18.14 | 351.74 | -43.79 | 115.07 | 0.7284 | 318.0 | 239.4 | |
| 7.15 | -6.00 | 5.12 | -6.00 | -17.46 | 351.86 | -43.67 | 114.22 | 0.7246 | 581.4 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.87 | -18.80 | 351.44 | -44.09 | 115.81 | 0.7340 | 390.0 | 268.1 | |
| 1.19 | -6.00 | 0.85 | -6.00 | -17.00 | 351.75 | -43.79 | 113.56 | 0.7243 | 244.1 | 999999 | |
| 0.68 | -6.00 | 0.49 | -6.00 | -17.18 | 351.65 | -43.89 | 113.77 | 0.7260 | 365.4 | 999999 | |
| 1.36 | -6.00 | 0.97 | -6.00 | -16.14 | 351.56 | -43.97 | 112.35 | 0.7234 | 484.4 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -17.74 | 350.91 | -44.62 | 114.22 | 0.7359 | 366.0 | 303.6 | |
| 2.38 | 8.18 | 1.72 | 5.90 | -15.09 | 350.82 | -44.71 | 110.69 | 0.7285 | -537.0 | -399.7 | |
| 0.00 | 3.41 | 0.00 | 2.52 | -17.24 | 349.79 | -45.74 | 113.17 | 0.7464 | -723.0 | -663.2 | |
| 0.00 | 2.13 | 0.00 | 1.55 | -15.24 | 350.39 | -45.15 | 110.76 | 0.7338 | -627.0 | -586.6 | |
| 0.00 | 1.70 | 0.00 | 1.26 | -16.84 | 349.88 | -45.66 | 112.68 | 0.7442 | -841.0 | -681.8 | |
| 0.00 | 1.11 | 0.00 | 0.82 | -16.62 | 349.90 | -45.63 | 112.41 | 0.7433 | -773.0 | -653.8 | |
| 0.00 | 1.19 | 0.00 | 0.88 | -16.99 | 349.65 | -45.88 | 112.80 | 0.7471 | -745.0 | -547.6 | |
| 0.00 | 1.28 | 0.00 | 0.95 | -16.75 | 349.68 | -45.85 | 112.49 | 0.7460 | -427.0 | -520.3 | |
| 0.00 | 2.81 | 0.00 | 2.05 | -15.06 | 350.13 | -45.40 | 110.43 | 0.7361 | -488.0 | -500.1 | |
| 0.00 | 1.02 | 0.00 | 0.76 | -16.41 | 349.39 | -46.15 | 111.95 | 0.7482 | -560.0 | -450.6 | |
| 0.00 | 1.02 | 0.00 | 0.77 | -15.30 | 348.56 | -46.98 | 110.26 | 0.7540 | -381.0 | -321.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
