SDO HMI 2011-12-11 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.88 | 440.74 | 60.03 | 304.44 | -17.35 | 352.34 | -41.54 | 114.92 | 0.7003 | 715.6 | 279.4 | |
|
previous
or next observation for the same group /

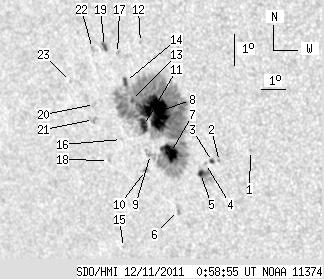

back to the solar disc SDO HMI 2011-12-11 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.67 | -18.25 | 355.95 | -37.93 | 117.87 | 0.6627 | -617.0 | -420.8 | |
| 0.00 | 0.85 | 0.00 | 0.57 | -18.58 | 354.62 | -39.26 | 117.66 | 0.6796 | 410.0 | 369.0 | |
| 1.87 | 2.21 | 1.27 | 1.50 | -18.58 | 354.34 | -39.54 | 117.52 | 0.6828 | 670.9 | 464.8 | |
| 0.00 | 1.19 | 0.00 | 0.81 | -18.64 | 354.04 | -39.84 | 117.46 | 0.6865 | 692.0 | 561.8 | |
| 2.81 | 13.72 | 1.92 | 9.35 | -18.96 | 353.74 | -40.14 | 117.74 | 0.6911 | 548.0 | -224.8 | |
| 0.00 | 2.73 | 0.00 | 1.91 | -20.11 | 352.48 | -41.40 | 118.68 | 0.7102 | -827.0 | -664.6 | |
| 13.37 | 392.54 | 9.25 | 270.88 | -18.30 | 352.70 | -41.18 | 116.36 | 0.7000 | 1077.4 | 338.1 | |
| 53.24 | -7.00 | 36.70 | -7.00 | -17.06 | 352.43 | -41.45 | 114.55 | 0.6981 | 1073.5 | 999999 | |
| 0.00 | 6.30 | 0.00 | 4.42 | -18.36 | 351.85 | -42.03 | 116.06 | 0.7098 | 435.0 | 317.2 | |
| 1.36 | 2.21 | 0.96 | 1.56 | -18.86 | 351.48 | -42.40 | 116.57 | 0.7158 | 497.5 | 419.4 | |
| 8.01 | -7.00 | 5.58 | -7.00 | -17.46 | 351.82 | -42.06 | 114.84 | 0.7066 | 625.2 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -14.91 | 352.36 | -41.52 | 111.55 | 0.6911 | -680.0 | -542.3 | |
| 1.62 | -7.00 | 1.13 | -7.00 | -16.69 | 351.53 | -42.35 | 113.68 | 0.7069 | 252.1 | 999999 | |
| 1.87 | -7.00 | 1.31 | -7.00 | -16.10 | 351.44 | -42.44 | 112.85 | 0.7059 | 518.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.63 | -21.27 | 349.69 | -44.19 | 118.92 | 0.7444 | 538.0 | 455.0 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -17.89 | 350.76 | -43.12 | 114.98 | 0.7200 | 409.0 | 261.3 | |
| 0.00 | 1.19 | 0.00 | 0.83 | -15.24 | 351.33 | -42.55 | 111.63 | 0.7043 | -339.0 | -339.9 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -18.54 | 350.00 | -43.88 | 115.53 | 0.7307 | 470.0 | 298.7 | |
| 2.73 | 4.09 | 1.91 | 2.86 | -15.03 | 350.84 | -43.04 | 111.16 | 0.7092 | -726.6 | -566.7 | |
| 0.00 | 2.13 | 0.00 | 1.53 | -16.80 | 349.93 | -43.95 | 113.22 | 0.7253 | -436.0 | -478.9 | |
| 0.00 | 4.26 | 0.00 | 3.07 | -17.27 | 349.75 | -44.13 | 113.76 | 0.7289 | -783.0 | -592.2 | |
| 0.00 | 2.13 | 0.00 | 1.50 | -15.09 | 350.32 | -43.56 | 111.05 | 0.7154 | -643.0 | -585.6 | |
| 0.00 | 0.68 | 0.00 | 0.49 | -16.09 | 349.10 | -44.78 | 111.98 | 0.7322 | -462.0 | -432.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
