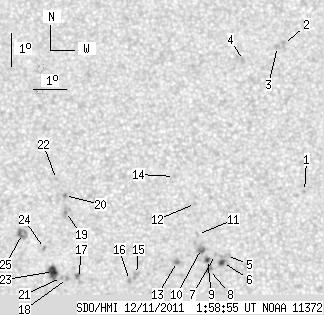

SDO HMI 2011-12-11 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.82 | 75.64 | 5.50 | 38.69 | 8.52 | 44.39 | 11.06 | 309.53 | 0.2467 | 142.2 | 67.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.45 | 9.73 | 49.49 | 16.16 | 302.50 | 0.3267 | 876.0 | 677.3 | |
| 0.00 | 2.13 | 0.00 | 1.13 | 14.17 | 49.10 | 15.77 | 313.55 | 0.3651 | 722.0 | 631.2 | |
| 0.00 | 2.47 | 0.00 | 1.31 | 14.11 | 48.90 | 15.57 | 313.77 | 0.3622 | 772.0 | 642.6 | |
| 0.00 | 2.22 | 0.00 | 1.17 | 13.68 | 47.81 | 14.47 | 314.92 | 0.3445 | 848.0 | 625.5 | |
| 0.00 | 2.98 | 0.00 | 1.54 | 7.81 | 47.00 | 13.67 | 301.20 | 0.2749 | -596.0 | -545.4 | |
| 2.04 | 4.17 | 1.05 | 2.15 | 7.60 | 46.87 | 13.54 | 300.77 | 0.2713 | -1000.2 | -559.3 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 7.84 | 46.66 | 13.33 | 301.92 | 0.2703 | -789.0 | -655.6 | |
| 0.00 | 4.17 | 0.00 | 2.14 | 7.40 | 46.46 | 13.13 | 300.84 | 0.2636 | -1072.0 | -867.7 | |
| 1.62 | 2.73 | 0.83 | 1.40 | 7.69 | 46.41 | 13.08 | 301.92 | 0.2654 | -1088.9 | -975.2 | |
| 0.00 | 6.47 | 0.00 | 3.33 | 8.02 | 46.24 | 12.91 | 303.31 | 0.2659 | -861.0 | -761.1 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 8.44 | 46.13 | 12.80 | 304.85 | 0.2682 | -684.0 | -547.9 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 9.37 | 46.10 | 12.77 | 307.69 | 0.2769 | -808.0 | -555.0 | |
| 0.00 | 2.73 | 0.00 | 1.39 | 7.63 | 45.49 | 12.16 | 303.58 | 0.2518 | -1036.0 | -890.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 10.17 | 45.49 | 12.16 | 311.35 | 0.2774 | -767.0 | -574.4 | |
| 0.00 | 3.66 | 0.00 | 1.86 | 7.24 | 44.24 | 10.91 | 305.11 | 0.2305 | -1063.0 | -842.2 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 7.06 | 44.02 | 10.69 | 304.99 | 0.2258 | -1128.0 | -869.2 | |
| 0.00 | 4.60 | 0.00 | 2.33 | 7.12 | 42.48 | 9.15 | 309.45 | 0.2054 | 748.0 | 657.3 | |
| 0.00 | 1.96 | 0.00 | 0.99 | 7.12 | 42.15 | 8.82 | 310.49 | 0.2010 | 924.0 | 749.1 | |
| 0.00 | 5.79 | 0.00 | 2.94 | 9.12 | 42.14 | 8.81 | 317.41 | 0.2244 | 1121.0 | 812.3 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 9.60 | 42.12 | 8.79 | 318.90 | 0.2302 | 1040.0 | 876.4 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 7.15 | 41.97 | 8.64 | 311.18 | 0.1990 | 896.0 | 746.6 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 10.08 | 41.89 | 8.56 | 320.99 | 0.2339 | 697.0 | 579.9 | |
| 7.16 | 8.95 | 3.62 | 4.52 | 7.33 | 41.74 | 8.40 | 312.64 | 0.1980 | 1131.4 | 896.9 | |
| 0.00 | 1.70 | 0.00 | 0.86 | 8.01 | 41.48 | 8.15 | 316.01 | 0.2030 | 952.0 | 743.1 | |
| 0.00 | 7.75 | 0.00 | 3.92 | 8.46 | 40.83 | 7.49 | 319.88 | 0.2011 | 976.0 | 950.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
