SDO HMI 2011-12-11 02:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.88 | 436.57 | 58.35 | 296.49 | -17.37 | 352.38 | -40.40 | 115.43 | 0.6873 | 729.8 | 289.2 | |
|
previous
or next observation for the same group /

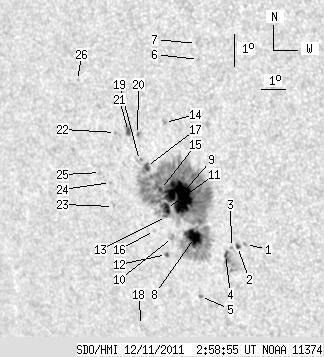

back to the solar disc SDO HMI 2011-12-11 02:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.85 | -18.57 | 354.69 | -38.10 | 118.21 | 0.6661 | 371.0 | 363.6 | |
| 1.79 | 2.39 | 1.19 | 1.59 | -18.63 | 354.35 | -38.43 | 118.12 | 0.6702 | 715.4 | 639.9 | |
| 0.00 | 1.28 | 0.00 | 0.85 | -18.66 | 354.10 | -38.68 | 118.04 | 0.6732 | 713.0 | 574.1 | |
| 1.70 | 15.93 | 1.14 | 10.69 | -18.88 | 353.80 | -38.98 | 118.19 | 0.6776 | 511.0 | -331.1 | |
| 0.00 | 1.28 | 0.00 | 0.88 | -20.19 | 352.40 | -40.39 | 119.25 | 0.6994 | -911.0 | -764.4 | |
| 0.00 | 0.68 | 0.00 | 0.44 | -12.89 | 354.12 | -38.67 | 109.73 | 0.6494 | 586.0 | 511.0 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -12.41 | 354.13 | -38.66 | 109.01 | 0.6476 | 744.0 | 552.5 | |
| 18.23 | 390.81 | 12.40 | 265.36 | -18.34 | 352.70 | -40.09 | 116.91 | 0.6878 | 1025.0 | 343.1 | |
| 50.01 | -8.00 | 33.92 | -8.00 | -17.07 | 352.43 | -40.35 | 115.03 | 0.6855 | 1098.3 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.47 | -18.34 | 351.79 | -40.99 | 116.49 | 0.6980 | 524.0 | 386.5 | |
| 5.28 | -8.00 | 3.62 | -8.00 | -17.44 | 351.80 | -40.98 | 115.26 | 0.6942 | 663.0 | 999999 | |
| 0.68 | 1.45 | 0.47 | 1.01 | -18.87 | 351.39 | -41.39 | 117.01 | 0.7047 | 580.2 | 468.0 | |
| 0.26 | -8.00 | 0.18 | -8.00 | -17.69 | 351.73 | -41.05 | 115.57 | 0.6960 | 427.7 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.49 | -14.80 | 352.38 | -40.40 | 111.82 | 0.6774 | -774.0 | -585.7 | |
| 1.45 | -8.00 | 0.99 | -8.00 | -16.85 | 351.71 | -41.07 | 114.42 | 0.6929 | 392.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -18.12 | 351.11 | -41.67 | 115.89 | 0.7047 | 412.0 | 332.3 | |
| 3.07 | -8.00 | 2.10 | -8.00 | -16.15 | 351.32 | -41.46 | 113.28 | 0.6947 | 541.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.74 | -21.09 | 349.58 | -43.20 | 119.11 | 0.7334 | 533.0 | 477.6 | |
| 0.00 | 2.47 | 0.00 | 1.70 | -15.96 | 351.08 | -41.70 | 112.93 | 0.6968 | 557.0 | 295.3 | |
| 0.77 | 2.04 | 0.52 | 1.40 | -15.16 | 351.20 | -41.58 | 111.87 | 0.6927 | -607.4 | -577.1 | |
| 2.64 | 4.09 | 1.82 | 2.81 | -15.07 | 350.85 | -41.93 | 111.61 | 0.6964 | -723.6 | -612.9 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -15.10 | 350.31 | -42.48 | 111.44 | 0.7028 | -707.0 | -655.8 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -17.37 | 349.60 | -43.18 | 114.26 | 0.7187 | -754.0 | -667.7 | |
| 0.00 | 1.19 | 0.00 | 0.84 | -16.63 | 349.69 | -43.09 | 113.30 | 0.7151 | -700.0 | -564.7 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -16.32 | 349.35 | -43.43 | 112.76 | 0.7178 | -176.0 | -259.2 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -13.51 | 349.10 | -43.69 | 108.85 | 0.7120 | -481.0 | -410.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
