SDO HMI 2011-12-11 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.12 | 226.40 | 58.83 | 460.20 | -23.04 | 107.42 | 75.19 | 246.33 | 0.9724 | 399.1 | 288.5 | |
|
previous
or next observation for the same group /

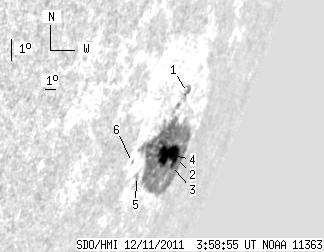

back to the solar disc SDO HMI 2011-12-11 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.71 | 0.00 | 11.18 | -21.07 | 106.68 | 74.45 | 248.29 | 0.9687 | 519.0 | 441.8 | |
| 4.69 | 217.19 | 10.53 | 442.89 | -23.14 | 108.54 | 76.31 | 246.33 | 0.9765 | -289.6 | 291.0 | |
| 0.94 | -2.00 | 2.07 | -2.00 | -23.40 | 108.32 | 76.08 | 246.05 | 0.9758 | 88.8 | 999999 | |
| 22.49 | -2.00 | 46.23 | -2.00 | -23.05 | 107.20 | 74.97 | 246.30 | 0.9716 | 590.1 | 999999 | |
| 0.00 | 2.56 | 0.00 | 4.56 | -23.77 | 104.67 | 72.43 | 245.30 | 0.9616 | -146.0 | -165.0 | |
| 0.00 | 0.94 | 0.00 | 1.57 | -23.32 | 103.64 | 71.41 | 245.64 | 0.9567 | -110.0 | -88.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
