SDO HMI 2011-12-11 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.24 | 59.57 | 7.29 | 30.60 | 8.30 | 44.53 | 12.29 | 306.45 | 0.2612 | 87.1 | 40.4 | |
|
previous
or next observation for the same group /

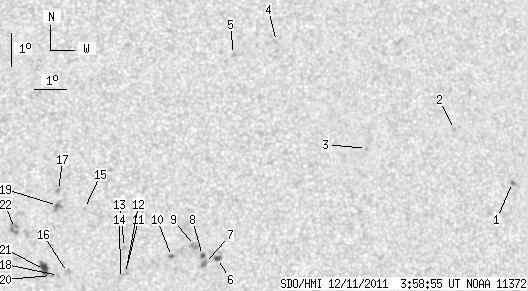

back to the solar disc SDO HMI 2011-12-11 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 1.36 | 0.24 | 0.75 | 9.89 | 56.46 | 24.22 | 293.69 | 0.4433 | -1025.8 | -877.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 11.47 | 54.69 | 22.45 | 298.67 | 0.4284 | -966.0 | -767.8 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 10.89 | 51.81 | 19.57 | 300.64 | 0.3840 | 666.0 | 561.6 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 14.13 | 49.18 | 16.94 | 311.50 | 0.3789 | 838.0 | 743.0 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 13.73 | 47.79 | 15.55 | 313.05 | 0.3580 | 774.0 | 660.5 | |
| 2.22 | 4.86 | 1.15 | 2.51 | 7.59 | 46.97 | 14.74 | 298.72 | 0.2888 | -964.7 | -703.4 | |
| 0.00 | 3.49 | 0.00 | 1.80 | 7.44 | 46.57 | 14.33 | 298.92 | 0.2817 | -1091.0 | -879.9 | |
| 1.36 | 1.96 | 0.70 | 1.01 | 7.68 | 46.51 | 14.28 | 299.76 | 0.2828 | -1065.3 | -983.7 | |
| 0.00 | 4.77 | 0.00 | 2.46 | 7.98 | 46.28 | 14.04 | 301.09 | 0.2819 | -970.0 | -858.8 | |
| 1.28 | 2.56 | 0.66 | 1.31 | 7.65 | 45.56 | 13.33 | 301.36 | 0.2688 | -888.7 | -723.9 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 7.29 | 44.18 | 11.94 | 302.95 | 0.2457 | -943.0 | -779.5 | |
| 0.00 | 2.39 | 0.00 | 1.22 | 7.14 | 44.15 | 11.91 | 302.50 | 0.2439 | -900.0 | -811.8 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 7.91 | 44.14 | 11.90 | 305.16 | 0.2510 | -833.0 | -653.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 6.99 | 43.99 | 11.75 | 302.31 | 0.2403 | -912.0 | -626.4 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 9.08 | 42.95 | 10.72 | 311.75 | 0.2473 | 814.0 | 625.3 | |
| 0.00 | 3.24 | 0.00 | 1.64 | 7.17 | 42.39 | 10.15 | 306.83 | 0.2195 | 730.0 | 656.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 9.62 | 42.18 | 9.94 | 315.49 | 0.2440 | 1008.0 | 814.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 7.08 | 42.11 | 9.88 | 307.24 | 0.2148 | 925.0 | 687.9 | |
| 1.45 | 5.45 | 0.74 | 2.78 | 9.17 | 42.14 | 9.90 | 314.27 | 0.2381 | 1048.9 | 813.2 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 7.08 | 41.90 | 9.67 | 307.83 | 0.2120 | 839.0 | 686.7 | |
| 7.50 | 8.44 | 3.80 | 4.27 | 7.26 | 41.70 | 9.46 | 309.10 | 0.2111 | 1104.5 | 756.9 | |
| 0.00 | 7.50 | 0.00 | 3.80 | 8.48 | 40.82 | 8.58 | 316.15 | 0.2140 | 876.0 | 916.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
