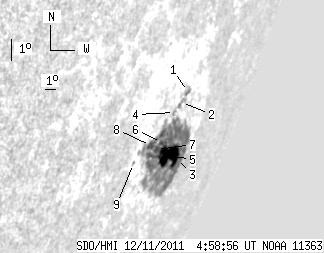

SDO HMI 2011-12-11 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.36 | 220.51 | 74.42 | 462.88 | -22.93 | 106.96 | 75.27 | 246.45 | 0.9726 | 477.1 | 278.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.09 | 0.00 | 8.23 | -21.01 | 106.54 | 74.85 | 248.39 | 0.9703 | 488.0 | 444.7 | |
| 0.00 | 4.52 | 0.00 | 9.01 | -21.36 | 106.31 | 74.62 | 248.01 | 0.9695 | 544.0 | 501.1 | |
| 4.18 | 208.67 | 9.73 | 439.65 | -23.14 | 108.56 | 76.87 | 246.38 | 0.9784 | -322.0 | 269.7 | |
| 0.00 | 1.87 | 0.00 | 3.64 | -21.68 | 105.92 | 74.23 | 247.64 | 0.9681 | 566.0 | 487.2 | |
| 24.62 | -3.00 | 52.43 | -3.00 | -23.05 | 107.17 | 75.48 | 246.35 | 0.9735 | 590.9 | 999999 | |
| 1.70 | -3.00 | 3.30 | -3.00 | -22.64 | 105.78 | 74.09 | 246.64 | 0.9680 | 680.9 | 999999 | |
| 1.11 | -3.00 | 2.12 | -3.00 | -22.87 | 105.52 | 73.83 | 246.39 | 0.9670 | 663.8 | 999999 | |
| 3.75 | -3.00 | 6.84 | -3.00 | -22.74 | 104.66 | 72.97 | 246.42 | 0.9634 | 647.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 2.35 | -23.32 | 103.62 | 71.93 | 245.70 | 0.9591 | -112.0 | -68.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
