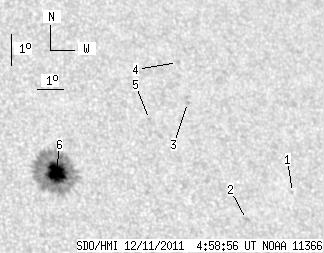

SDO HMI 2011-12-11 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.39 | 144.51 | 12.87 | 87.25 | 18.12 | 61.79 | 30.10 | 303.60 | 0.5742 | -1078.8 | -428.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.68 | 17.49 | 70.19 | 38.50 | 297.22 | 0.6700 | -503.0 | -417.0 | |
| 0.00 | 2.39 | 0.00 | 1.54 | 16.64 | 68.19 | 36.50 | 297.08 | 0.6424 | -709.0 | -528.3 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 20.29 | 66.80 | 35.11 | 303.10 | 0.6464 | -688.0 | -556.9 | |
| 0.00 | 1.62 | 0.00 | 1.06 | 21.56 | 66.76 | 35.07 | 304.87 | 0.6537 | -583.0 | -413.0 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 19.75 | 65.22 | 33.53 | 303.41 | 0.6251 | -727.0 | -607.0 | |
| 21.39 | 137.01 | 12.87 | 82.39 | 18.07 | 61.45 | 29.76 | 303.77 | 0.5699 | -1248.5 | -422.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
