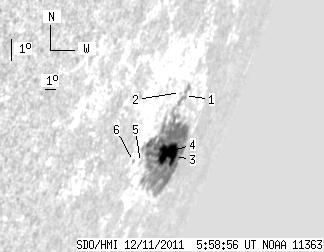

SDO HMI 2011-12-11 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.43 | 202.45 | 61.55 | 441.84 | -22.97 | 107.31 | 76.16 | 246.49 | 0.9758 | 414.5 | 282.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.67 | 0.00 | 15.94 | -21.20 | 106.53 | 75.38 | 248.24 | 0.9724 | 502.0 | 463.0 | |
| 0.00 | 0.68 | 0.00 | 1.36 | -21.11 | 105.89 | 74.74 | 248.28 | 0.9699 | 228.0 | 276.1 | |
| 5.11 | 191.63 | 12.37 | 420.04 | -23.14 | 108.47 | 77.32 | 246.41 | 0.9798 | -289.4 | 276.2 | |
| 22.32 | -3.00 | 49.18 | -3.00 | -23.02 | 107.11 | 75.96 | 246.43 | 0.9752 | 607.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 2.53 | -23.35 | 104.43 | 73.28 | 245.83 | 0.9650 | 329.0 | 305.4 | |
| 0.00 | 1.11 | 0.00 | 1.97 | -23.33 | 103.61 | 72.47 | 245.77 | 0.9615 | -170.0 | -56.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
