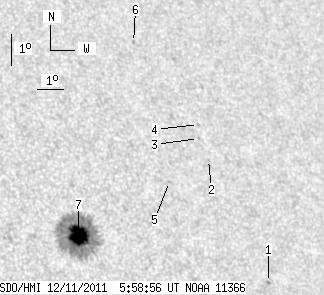

SDO HMI 2011-12-11 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.20 | 149.71 | 14.64 | 90.85 | 18.18 | 61.67 | 30.53 | 303.33 | 0.5797 | -1071.0 | -379.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 1.00 | 16.64 | 68.23 | 37.08 | 296.77 | 0.6494 | -737.0 | -569.6 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 20.47 | 66.85 | 35.71 | 302.98 | 0.6541 | -647.0 | -593.7 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 21.14 | 66.64 | 35.50 | 304.02 | 0.6558 | -686.0 | -617.9 | |
| 0.00 | 0.85 | 0.00 | 0.56 | 21.58 | 66.77 | 35.62 | 304.54 | 0.6599 | -576.0 | -419.8 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 19.77 | 65.17 | 34.03 | 303.11 | 0.6310 | -693.0 | -550.1 | |
| 0.00 | 1.28 | 0.00 | 0.84 | 24.21 | 65.00 | 33.86 | 309.25 | 0.6585 | -649.0 | -539.5 | |
| 24.20 | 143.32 | 14.64 | 86.69 | 18.07 | 61.44 | 30.30 | 303.34 | 0.5763 | -1237.6 | -369.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
