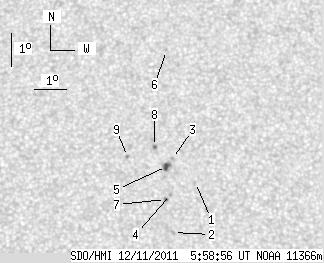

SDO HMI 2011-12-11 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.26 | 14.15 | 2.22 | 7.34 | 13.33 | 41.63 | 10.48 | 323.10 | 0.2973 | 463.5 | 376.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | 12.82 | 42.53 | 11.38 | 319.88 | 0.2999 | 784.0 | 576.5 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 11.31 | 41.79 | 10.64 | 318.20 | 0.2729 | 774.0 | 669.6 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 13.55 | 41.85 | 10.70 | 323.12 | 0.3022 | 753.0 | 604.5 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 12.46 | 41.74 | 10.59 | 321.05 | 0.2869 | 821.0 | 641.4 | |
| 3.58 | 4.86 | 1.86 | 2.52 | 13.31 | 41.65 | 10.51 | 323.12 | 0.2970 | 927.0 | 634.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 16.86 | 41.83 | 10.69 | 329.08 | 0.3469 | 516.0 | 414.0 | |
| 0.34 | 1.11 | 0.18 | 0.57 | 12.31 | 41.58 | 10.43 | 321.13 | 0.2833 | 947.8 | 909.2 | |
| 0.34 | 1.19 | 0.18 | 0.62 | 13.92 | 41.31 | 10.16 | 325.24 | 0.3018 | -825.0 | -582.7 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 13.61 | 40.46 | 9.32 | 326.93 | 0.2897 | -780.0 | -567.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
