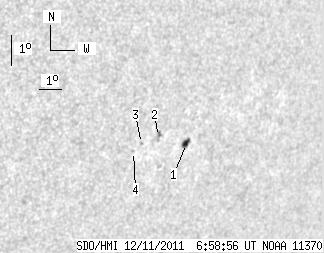

SDO HMI 2011-12-11 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.18 | 11.07 | 3.26 | 8.53 | -19.22 | 77.75 | 47.15 | 244.85 | 0.7670 | -613.4 | -482.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.18 | 5.11 | 3.26 | 4.00 | -19.28 | 78.63 | 48.03 | 245.09 | 0.7760 | -582.7 | -417.7 | |
| 0.00 | 4.00 | 0.00 | 3.05 | -19.06 | 77.25 | 46.65 | 244.88 | 0.7614 | -636.0 | -484.6 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -19.28 | 76.56 | 45.96 | 244.35 | 0.7550 | -629.0 | -481.6 | |
| 0.00 | 1.02 | 0.00 | 0.77 | -19.53 | 76.29 | 45.69 | 243.93 | 0.7531 | -675.0 | -535.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
