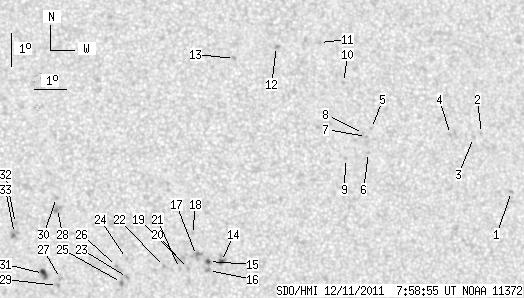

SDO HMI 2011-12-11 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.75 | 67.74 | 4.00 | 35.50 | 8.92 | 46.25 | 16.19 | 300.87 | 0.3210 | -5.3 | -92.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.81 | 9.78 | 56.63 | 26.57 | 291.75 | 0.4766 | -950.0 | -709.0 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 11.52 | 55.78 | 25.73 | 295.82 | 0.4745 | -752.0 | -578.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 11.40 | 55.50 | 25.45 | 295.81 | 0.4698 | -747.0 | -573.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 11.49 | 54.75 | 24.69 | 296.63 | 0.4599 | -853.0 | -629.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 11.66 | 52.17 | 22.11 | 299.47 | 0.4252 | 642.0 | 503.0 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 10.94 | 52.01 | 21.95 | 298.10 | 0.4179 | 763.0 | 598.0 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 11.42 | 51.98 | 21.93 | 299.16 | 0.4210 | 785.0 | 587.6 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 11.51 | 51.89 | 21.84 | 299.44 | 0.4204 | 627.0 | 530.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 10.75 | 51.25 | 21.20 | 298.50 | 0.4059 | 871.0 | 697.0 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 13.05 | 51.38 | 21.32 | 303.23 | 0.4252 | 712.0 | 530.3 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 14.27 | 50.71 | 20.65 | 306.47 | 0.4269 | 696.0 | 496.1 | |
| 0.00 | 1.87 | 0.00 | 1.02 | 14.14 | 49.30 | 19.25 | 308.09 | 0.4079 | 887.0 | 737.9 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 13.77 | 47.92 | 17.87 | 309.35 | 0.3871 | 886.0 | 705.1 | |
| 1.96 | 4.69 | 1.03 | 2.45 | 7.66 | 47.15 | 17.09 | 295.64 | 0.3245 | -965.5 | -690.3 | |
| 1.53 | 2.22 | 0.80 | 1.16 | 7.66 | 46.74 | 16.69 | 296.16 | 0.3185 | -1107.1 | -878.1 | |
| 0.00 | 1.87 | 0.00 | 0.98 | 7.39 | 46.73 | 16.68 | 295.40 | 0.3165 | -1007.0 | -823.0 | |
| 0.00 | 6.05 | 0.00 | 3.15 | 7.84 | 46.38 | 16.32 | 297.17 | 0.3143 | -1129.0 | -874.7 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 8.46 | 46.28 | 16.22 | 299.08 | 0.3176 | -634.0 | -605.2 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 7.45 | 46.11 | 16.06 | 296.40 | 0.3076 | -896.0 | -760.4 | |
| 0.00 | 4.35 | 0.00 | 2.26 | 7.72 | 45.88 | 15.82 | 297.53 | 0.3060 | -894.0 | -737.8 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 7.45 | 45.84 | 15.78 | 296.79 | 0.3035 | -594.0 | -564.3 | |
| 0.00 | 2.04 | 0.00 | 1.06 | 7.51 | 45.37 | 15.32 | 297.65 | 0.2970 | -882.0 | -691.2 | |
| 0.00 | 2.47 | 0.00 | 1.27 | 7.18 | 44.22 | 14.17 | 298.44 | 0.2775 | -1165.0 | -833.4 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 7.74 | 44.21 | 14.16 | 300.25 | 0.2818 | -857.0 | -708.9 | |
| 0.00 | 2.98 | 0.00 | 1.54 | 7.03 | 44.04 | 13.98 | 298.27 | 0.2735 | -1107.0 | -763.0 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 7.51 | 43.90 | 13.84 | 300.05 | 0.2753 | -893.0 | -695.3 | |
| 0.00 | 1.79 | 0.00 | 0.91 | 7.15 | 42.18 | 12.12 | 302.16 | 0.2472 | 952.0 | 753.8 | |
| 0.00 | 4.26 | 0.00 | 2.19 | 9.23 | 42.15 | 12.09 | 308.93 | 0.2671 | 1036.0 | 834.3 | |
| 0.00 | 1.70 | 0.00 | 0.87 | 6.94 | 42.08 | 12.02 | 301.64 | 0.2440 | 918.0 | 777.4 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 9.56 | 42.13 | 12.08 | 309.94 | 0.2703 | 1004.0 | 698.3 | |
| 4.26 | 5.03 | 2.17 | 2.56 | 7.29 | 41.66 | 11.61 | 303.79 | 0.2413 | 1067.4 | 874.9 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 8.78 | 40.85 | 10.80 | 310.71 | 0.2454 | 1022.0 | 800.3 | |
| 0.00 | 4.43 | 0.00 | 2.26 | 8.48 | 40.82 | 10.76 | 309.86 | 0.2417 | 941.0 | 892.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
