SDO HMI 2011-12-11 08:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.60 | 13.98 | 3.68 | 11.01 | -19.17 | 78.00 | 48.49 | 245.39 | 0.7803 | -302.4 | -185.5 | |
|
previous
or next observation for the same group /

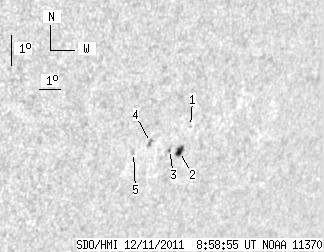

back to the solar disc SDO HMI 2011-12-11 08:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.61 | -18.50 | 78.85 | 49.34 | 246.49 | 0.7868 | 533.0 | 471.9 | |
| 4.60 | 6.39 | 3.68 | 5.10 | -19.28 | 78.63 | 49.12 | 245.46 | 0.7869 | -529.5 | -333.5 | |
| 0.00 | 1.96 | 0.00 | 1.55 | -19.22 | 78.13 | 48.62 | 245.37 | 0.7817 | 504.0 | 416.3 | |
| 0.00 | 3.41 | 0.00 | 2.64 | -19.00 | 77.15 | 47.64 | 245.31 | 0.7713 | -719.0 | -484.1 | |
| 0.00 | 1.45 | 0.00 | 1.11 | -19.32 | 76.48 | 46.97 | 244.69 | 0.7655 | -692.0 | -487.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
