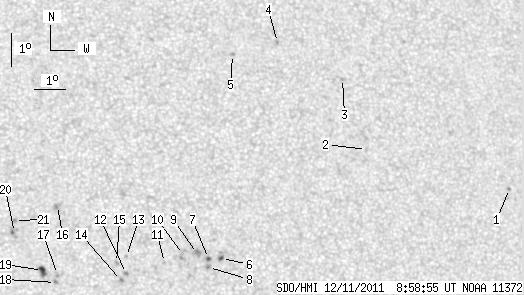

SDO HMI 2011-12-11 08:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.07 | 54.93 | 3.65 | 28.69 | 8.56 | 45.28 | 15.77 | 300.46 | 0.3122 | 18.9 | -51.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 08:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.82 | 9.78 | 56.65 | 27.14 | 291.36 | 0.4847 | -880.0 | -710.2 | |
| 0.00 | 1.87 | 0.00 | 1.03 | 10.93 | 52.02 | 22.51 | 297.53 | 0.4256 | 852.0 | 563.9 | |
| 0.00 | 2.13 | 0.00 | 1.17 | 13.08 | 51.42 | 21.91 | 302.61 | 0.4333 | 753.0 | 535.8 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 14.17 | 49.41 | 19.90 | 307.26 | 0.4164 | 846.0 | 719.5 | |
| 0.00 | 1.87 | 0.00 | 1.01 | 13.80 | 47.92 | 18.41 | 308.59 | 0.3942 | 962.0 | 744.7 | |
| 1.36 | 4.35 | 0.72 | 2.28 | 7.66 | 47.20 | 17.68 | 294.90 | 0.3334 | -988.9 | -624.4 | |
| 1.28 | 1.70 | 0.67 | 0.89 | 7.65 | 46.79 | 17.28 | 295.39 | 0.3273 | -1087.9 | -944.2 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 7.39 | 46.78 | 17.27 | 294.65 | 0.3254 | -970.0 | -848.7 | |
| 0.00 | 5.11 | 0.00 | 2.67 | 7.80 | 46.45 | 16.94 | 296.24 | 0.3233 | -997.0 | -908.5 | |
| 0.00 | 4.69 | 0.00 | 2.45 | 7.77 | 46.02 | 16.51 | 296.74 | 0.3166 | -841.0 | -770.0 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 7.53 | 45.42 | 15.91 | 296.87 | 0.3060 | -946.0 | -783.3 | |
| 0.00 | 2.22 | 0.00 | 1.14 | 7.20 | 44.23 | 14.72 | 297.64 | 0.2859 | -1135.0 | -877.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 7.71 | 44.25 | 14.74 | 299.18 | 0.2901 | -812.0 | -651.5 | |
| 0.00 | 2.04 | 0.00 | 1.06 | 6.99 | 44.07 | 14.56 | 297.23 | 0.2819 | -1116.0 | -851.1 | |
| 0.00 | 1.70 | 0.00 | 0.88 | 7.53 | 43.94 | 14.43 | 299.14 | 0.2840 | -971.0 | -741.2 | |
| 0.00 | 3.32 | 0.00 | 1.71 | 9.23 | 42.19 | 12.68 | 307.64 | 0.2748 | 976.0 | 884.4 | |
| 0.00 | 2.47 | 0.00 | 1.26 | 7.17 | 42.12 | 12.61 | 301.26 | 0.2545 | 930.0 | 712.6 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 6.93 | 42.05 | 12.54 | 300.58 | 0.2515 | 890.0 | 748.8 | |
| 4.43 | 5.79 | 2.26 | 2.96 | 7.29 | 41.67 | 12.15 | 302.60 | 0.2490 | 1027.0 | 839.8 | |
| 0.00 | 5.62 | 0.00 | 2.87 | 8.42 | 40.85 | 11.34 | 308.22 | 0.2486 | 991.0 | 811.7 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 8.78 | 40.86 | 11.35 | 309.33 | 0.2525 | 997.0 | 824.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
