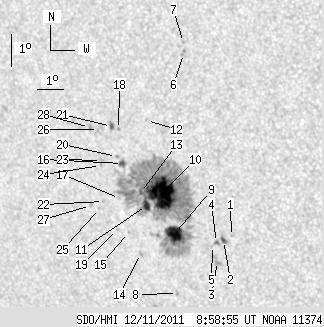

SDO HMI 2011-12-11 08:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.98 | 446.59 | 51.26 | 290.14 | -17.32 | 352.33 | -37.18 | 116.87 | 0.6493 | 671.4 | 299.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 08:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.43 | -18.46 | 354.78 | -34.73 | 119.93 | 0.6259 | 508.0 | 292.0 | |
| 2.13 | 3.75 | 1.36 | 2.39 | -18.58 | 354.45 | -35.06 | 119.91 | 0.6305 | 721.8 | 569.1 | |
| 0.00 | 5.03 | 0.00 | 3.23 | -19.23 | 354.06 | -35.45 | 120.61 | 0.6387 | -238.0 | -294.3 | |
| 1.19 | 1.87 | 0.76 | 1.20 | -18.64 | 354.16 | -35.35 | 119.83 | 0.6342 | 675.1 | 689.1 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -18.73 | 353.99 | -35.52 | 119.85 | 0.6368 | 510.0 | 441.8 | |
| 0.00 | 2.81 | 0.00 | 1.75 | -12.85 | 354.09 | -35.42 | 110.99 | 0.6076 | 557.0 | 530.5 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -12.51 | 354.14 | -35.37 | 110.49 | 0.6056 | 632.0 | 523.7 | |
| 0.00 | 1.62 | 0.00 | 1.07 | -20.23 | 352.23 | -37.28 | 120.93 | 0.6649 | -728.0 | -632.3 | |
| 16.70 | 79.15 | 10.87 | 51.57 | -18.36 | 352.61 | -36.90 | 118.52 | 0.6509 | 1017.8 | 266.4 | |
| 48.82 | 330.14 | 31.63 | 214.29 | -17.12 | 352.41 | -37.10 | 116.62 | 0.6473 | 1140.5 | 352.2 | |
| 4.09 | -10.00 | 2.68 | -10.00 | -17.48 | 351.73 | -37.78 | 116.81 | 0.6570 | 684.0 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.22 | -14.88 | 352.32 | -37.19 | 113.28 | 0.6384 | -634.0 | -577.0 | |
| 0.94 | -10.00 | 0.61 | -10.00 | -17.08 | 351.59 | -37.92 | 116.16 | 0.6568 | 494.5 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.42 | -18.97 | 351.11 | -38.40 | 118.58 | 0.6713 | 636.0 | 491.9 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -18.32 | 350.81 | -38.70 | 117.51 | 0.6717 | 536.0 | 408.8 | |
| 2.98 | -10.00 | 1.96 | -10.00 | -16.19 | 351.10 | -38.41 | 114.63 | 0.6588 | 506.0 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.68 | -17.26 | 350.72 | -38.79 | 115.99 | 0.6679 | -345.0 | -298.3 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -15.15 | 351.17 | -38.34 | 113.15 | 0.6535 | -706.0 | -500.0 | |
| 0.00 | 0.85 | 0.00 | 0.57 | -18.22 | 350.39 | -39.12 | 117.17 | 0.6760 | 392.0 | 337.4 | |
| 0.00 | 1.19 | 0.00 | 0.78 | -15.97 | 350.91 | -38.60 | 114.23 | 0.6601 | 593.0 | 494.2 | |
| 2.13 | 2.81 | 1.39 | 1.84 | -15.05 | 350.92 | -38.59 | 112.90 | 0.6562 | -763.6 | -761.2 | |
| 0.00 | 1.02 | 0.00 | 0.69 | -17.35 | 350.06 | -39.45 | 115.80 | 0.6760 | -598.0 | -508.5 | |
| 0.00 | 1.70 | 0.00 | 1.13 | -16.09 | 350.29 | -39.22 | 114.12 | 0.6680 | -469.0 | -394.8 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -16.25 | 350.21 | -39.30 | 114.31 | 0.6695 | -704.0 | -519.0 | |
| 0.00 | 1.19 | 0.00 | 0.80 | -17.57 | 349.84 | -39.67 | 116.00 | 0.6795 | -684.0 | -545.1 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -15.14 | 350.39 | -39.12 | 112.80 | 0.6630 | -747.0 | -653.1 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -17.48 | 349.50 | -40.01 | 115.71 | 0.6830 | -729.0 | -607.9 | |
| 0.00 | 2.04 | 0.00 | 1.35 | -15.08 | 350.05 | -39.47 | 112.56 | 0.6669 | -636.0 | -568.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
