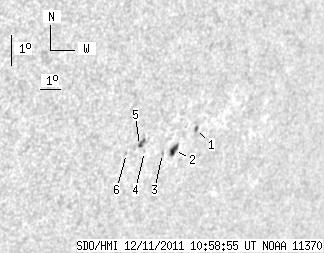

SDO HMI 2011-12-11 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.73 | 14.66 | 5.48 | 11.84 | -19.11 | 78.12 | 49.70 | 245.85 | 0.7920 | -336.8 | -204.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.77 | 2.39 | 0.63 | 1.98 | -18.56 | 79.48 | 51.06 | 246.93 | 0.8037 | 466.6 | 310.1 | |
| 4.94 | 5.79 | 4.04 | 4.73 | -19.25 | 78.68 | 50.26 | 245.86 | 0.7979 | -548.8 | -399.0 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -19.34 | 78.14 | 49.72 | 245.57 | 0.7928 | 479.0 | 414.7 | |
| 0.00 | 0.77 | 0.00 | 0.61 | -19.28 | 77.24 | 48.83 | 245.36 | 0.7839 | -333.0 | -269.0 | |
| 1.02 | 3.92 | 0.81 | 3.09 | -19.10 | 76.93 | 48.51 | 245.49 | 0.7803 | -581.1 | -549.6 | |
| 0.00 | 0.85 | 0.00 | 0.67 | -19.35 | 76.42 | 48.00 | 245.01 | 0.7759 | -608.0 | -493.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
