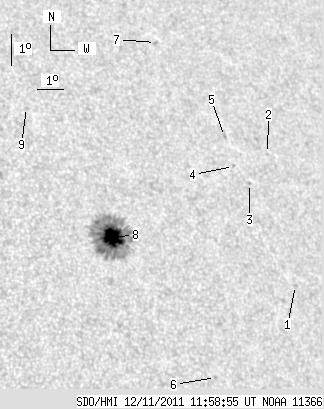

SDO HMI 2011-12-11 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.87 | 140.12 | 13.09 | 88.28 | 18.20 | 61.79 | 33.92 | 300.96 | 0.6204 | -973.2 | -398.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.75 | 16.60 | 68.26 | 40.39 | 295.11 | 0.6881 | -729.0 | -599.5 | |
| 0.00 | 0.94 | 0.00 | 0.65 | 20.73 | 68.30 | 40.43 | 300.62 | 0.7072 | -465.0 | -332.2 | |
| 0.00 | 0.68 | 0.00 | 0.47 | 19.78 | 67.27 | 39.39 | 299.91 | 0.6913 | -539.0 | -456.6 | |
| 0.00 | 0.94 | 0.00 | 0.64 | 20.31 | 66.77 | 38.90 | 300.88 | 0.6886 | -411.0 | -459.6 | |
| 0.00 | 1.87 | 0.00 | 1.28 | 21.26 | 66.70 | 38.83 | 302.18 | 0.6928 | -659.0 | -560.5 | |
| 0.00 | 1.19 | 0.00 | 0.76 | 13.76 | 64.50 | 36.63 | 292.79 | 0.6309 | -579.0 | -455.6 | |
| 0.00 | 1.45 | 0.00 | 0.99 | 24.27 | 64.88 | 37.01 | 307.18 | 0.6911 | -738.0 | -577.4 | |
| 20.87 | 130.83 | 13.09 | 82.04 | 18.06 | 61.49 | 33.62 | 300.94 | 0.6161 | -1206.7 | -389.6 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 22.15 | 59.24 | 31.37 | 308.43 | 0.6178 | -609.0 | -422.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
