SDO HMI 2011-12-11 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.84 | 157.90 | 73.32 | 491.55 | -22.60 | 106.83 | 80.05 | 247.15 | 0.9874 | 310.5 | 248.4 | |
|
previous
or next observation for the same group /

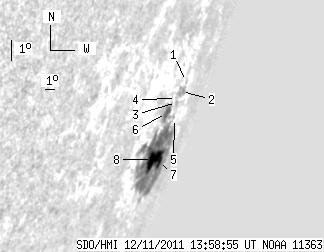

back to the solar disc SDO HMI 2011-12-11 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 3.51 | -20.57 | 107.27 | 80.49 | 249.22 | 0.9883 | 124.0 | 204.2 | |
| 0.00 | 7.41 | 0.00 | 22.86 | -20.89 | 107.02 | 80.25 | 248.89 | 0.9877 | 612.0 | 440.3 | |
| 0.00 | 1.79 | 0.00 | 5.48 | -21.24 | 106.87 | 80.09 | 248.53 | 0.9874 | 434.0 | 434.5 | |
| 0.00 | 0.43 | 0.00 | 1.25 | -21.12 | 106.59 | 79.81 | 248.64 | 0.9866 | 393.0 | 357.4 | |
| 0.00 | 0.77 | 0.00 | 2.53 | -21.75 | 107.69 | 80.92 | 248.06 | 0.9895 | 493.0 | 500.1 | |
| 6.30 | 146.39 | 17.52 | 455.92 | -21.60 | 105.84 | 79.07 | 248.11 | 0.9847 | 495.0 | 232.7 | |
| 5.45 | -6.00 | 18.91 | -6.00 | -23.12 | 108.02 | 81.24 | 246.69 | 0.9904 | -290.8 | 999999 | |
| 12.09 | -6.00 | 36.89 | -6.00 | -23.06 | 106.66 | 79.88 | 246.67 | 0.9871 | 517.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
