SDO HMI 2011-12-11 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.52 | 131.74 | 13.04 | 83.91 | 18.14 | 61.64 | 34.87 | 300.28 | 0.6311 | -1095.5 | -393.9 | |
|
previous
or next observation for the same group /

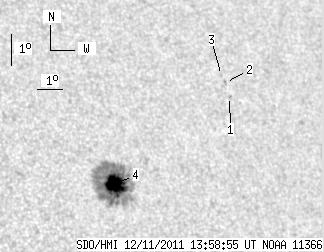

back to the solar disc SDO HMI 2011-12-11 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.83 | 20.85 | 66.78 | 40.01 | 301.00 | 0.7033 | -604.0 | -504.6 | |
| 0.00 | 1.62 | 0.00 | 1.13 | 21.29 | 66.76 | 39.99 | 301.59 | 0.7053 | -517.0 | -449.2 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 21.51 | 66.67 | 39.89 | 301.93 | 0.7054 | -501.0 | -365.0 | |
| 20.52 | 128.16 | 13.04 | 81.42 | 18.05 | 61.48 | 34.71 | 300.24 | 0.6289 | -1223.2 | -391.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
