SDO HMI 2011-12-11 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.58 | 17.79 | 6.35 | 14.87 | -19.07 | 78.13 | 51.35 | 246.39 | 0.8077 | -234.4 | -56.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

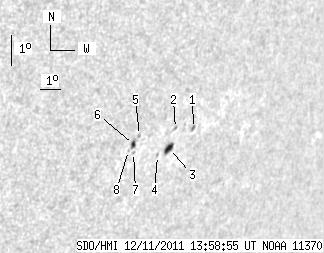

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.62 | -18.58 | 79.67 | 52.89 | 247.41 | 0.8210 | 696.0 | 480.7 | |
| 0.00 | 1.36 | 0.00 | 1.15 | -18.58 | 78.75 | 51.97 | 247.16 | 0.8124 | 462.0 | 416.8 | |
| 5.45 | 6.90 | 4.62 | 5.84 | -19.21 | 78.71 | 51.94 | 246.40 | 0.8136 | -488.0 | -323.0 | |
| 0.00 | 1.02 | 0.00 | 0.86 | -19.43 | 78.20 | 51.43 | 245.99 | 0.8094 | 320.0 | 273.5 | |
| 0.00 | 1.02 | 0.00 | 0.83 | -18.81 | 77.04 | 50.27 | 246.40 | 0.7967 | -487.0 | -460.9 | |
| 2.13 | 3.66 | 1.73 | 2.98 | -19.09 | 76.87 | 50.09 | 246.00 | 0.7958 | -446.9 | -474.2 | |
| 0.00 | 1.11 | 0.00 | 0.90 | -19.34 | 76.97 | 50.20 | 245.73 | 0.7975 | -376.0 | -320.4 | |
| 0.00 | 0.85 | 0.00 | 0.69 | -19.28 | 76.70 | 49.93 | 245.72 | 0.7947 | -482.0 | -444.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
