SDO HMI 2011-12-11 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.42 | 63.11 | 2.35 | 34.09 | 9.45 | 47.61 | 20.84 | 296.17 | 0.3908 | -99.9 | -6.2 | |
|
previous
or next observation for the same group /

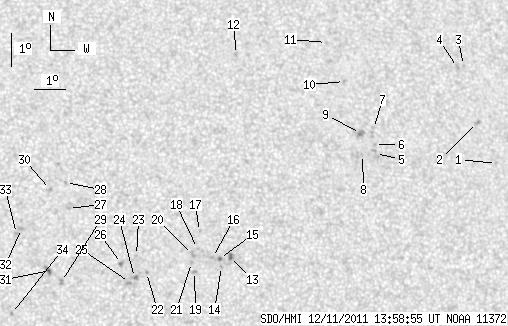

back to the solar disc SDO HMI 2011-12-11 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.69 | 10.55 | 56.37 | 29.60 | 291.29 | 0.5232 | -633.0 | -462.6 | |
| 0.00 | 2.73 | 0.00 | 1.58 | 11.78 | 55.85 | 29.08 | 293.85 | 0.5223 | -729.0 | -579.0 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 13.51 | 55.58 | 28.81 | 297.09 | 0.5284 | -623.0 | -510.0 | |
| 0.00 | 2.73 | 0.00 | 1.58 | 13.45 | 55.37 | 28.59 | 297.15 | 0.5252 | -813.0 | -570.8 | |
| 0.00 | 4.09 | 0.00 | 2.29 | 10.83 | 52.29 | 25.52 | 294.67 | 0.4676 | 343.0 | 540.3 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 11.11 | 52.29 | 25.51 | 295.21 | 0.4691 | 657.0 | 506.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 11.59 | 52.30 | 25.52 | 296.15 | 0.4722 | 437.0 | 326.6 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 10.80 | 51.86 | 25.08 | 294.96 | 0.4612 | 803.0 | 688.1 | |
| 0.00 | 4.34 | 0.00 | 2.43 | 11.44 | 51.85 | 25.08 | 296.22 | 0.4650 | 756.0 | 650.3 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 13.01 | 51.48 | 24.70 | 299.61 | 0.4703 | 730.0 | 537.1 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 14.19 | 51.01 | 24.23 | 302.30 | 0.4727 | 708.0 | 482.2 | |
| 0.00 | 1.87 | 0.00 | 1.03 | 13.82 | 48.00 | 21.22 | 304.91 | 0.4305 | 905.0 | 692.1 | |
| 2.04 | 2.21 | 1.09 | 1.18 | 7.74 | 47.36 | 20.58 | 292.07 | 0.3776 | -865.1 | -739.5 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 7.44 | 47.06 | 20.28 | 291.60 | 0.3713 | -851.0 | -640.9 | |
| 1.36 | 1.36 | 0.73 | 0.73 | 7.67 | 47.01 | 20.23 | 292.25 | 0.3719 | -960.0 | 0.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 7.70 | 46.78 | 20.01 | 292.54 | 0.3688 | -957.0 | -793.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 8.48 | 46.41 | 19.64 | 294.87 | 0.3680 | -660.0 | -540.9 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 7.97 | 46.32 | 19.55 | 293.68 | 0.3634 | -744.0 | -661.4 | |
| 0.00 | 2.04 | 0.00 | 1.08 | 7.29 | 46.20 | 19.42 | 292.04 | 0.3574 | -893.0 | -650.8 | |
| 0.00 | 2.38 | 0.00 | 1.27 | 7.79 | 46.16 | 19.38 | 293.40 | 0.3598 | -1002.0 | -801.8 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 7.55 | 46.11 | 19.34 | 292.82 | 0.3577 | -786.0 | -685.0 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 7.25 | 44.69 | 17.91 | 293.55 | 0.3343 | -893.0 | -780.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 7.76 | 44.39 | 17.62 | 295.29 | 0.3332 | -777.0 | -577.2 | |
| 0.00 | 3.58 | 0.00 | 1.87 | 7.10 | 44.31 | 17.53 | 293.57 | 0.3276 | -994.0 | -874.4 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 6.95 | 44.14 | 17.37 | 293.34 | 0.3242 | -969.0 | -849.0 | |
| 0.00 | 2.47 | 0.00 | 1.29 | 7.52 | 43.92 | 17.14 | 295.22 | 0.3244 | -1179.0 | -909.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 9.16 | 42.34 | 15.57 | 302.06 | 0.3140 | 824.0 | 658.3 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 9.94 | 42.28 | 15.51 | 304.25 | 0.3201 | 737.0 | 540.1 | |
| 0.00 | 2.55 | 0.00 | 1.32 | 6.98 | 42.04 | 15.26 | 296.16 | 0.2924 | 872.0 | 751.3 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 9.72 | 41.81 | 15.03 | 304.50 | 0.3116 | 851.0 | 691.8 | |
| 1.02 | 4.00 | 0.53 | 2.07 | 7.30 | 41.68 | 14.90 | 297.71 | 0.2895 | 1060.3 | 837.3 | |
| 0.00 | 2.30 | 0.00 | 1.19 | 8.56 | 40.86 | 14.09 | 302.89 | 0.2879 | 962.0 | 794.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 8.41 | 40.70 | 13.93 | 302.73 | 0.2844 | 900.0 | 728.9 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 6.02 | 40.48 | 13.70 | 295.40 | 0.2620 | 767.0 | 645.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
