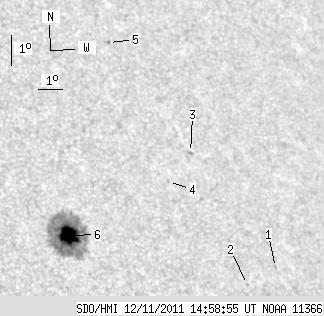

SDO HMI 2011-12-11 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.78 | 143.65 | 13.30 | 92.26 | 18.14 | 61.78 | 35.56 | 299.84 | 0.6393 | -1041.7 | -369.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.73 | 17.11 | 69.56 | 43.34 | 294.52 | 0.7233 | -640.0 | -553.1 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 16.57 | 68.23 | 42.01 | 294.35 | 0.7065 | -656.0 | -552.8 | |
| 0.00 | 1.96 | 0.00 | 1.38 | 20.69 | 67.09 | 40.87 | 300.35 | 0.7117 | -583.0 | -373.7 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 19.77 | 65.89 | 39.67 | 299.76 | 0.6943 | -585.0 | -497.0 | |
| 0.00 | 1.02 | 0.00 | 0.71 | 24.20 | 64.89 | 38.66 | 306.07 | 0.7073 | -596.0 | -521.8 | |
| 20.78 | 137.77 | 13.30 | 88.15 | 18.06 | 61.53 | 35.31 | 299.86 | 0.6360 | -1203.3 | -363.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
