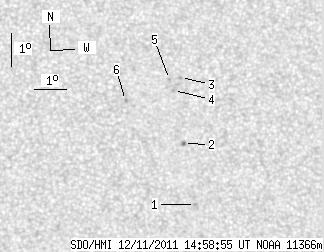

SDO HMI 2011-12-11 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 8.00 | 0.85 | 4.23 | 12.99 | 41.52 | 15.30 | 311.94 | 0.3482 | 1.3 | 71.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | 10.50 | 42.13 | 15.91 | 305.06 | 0.3307 | 871.0 | 696.2 | |
| 1.62 | 2.04 | 0.85 | 1.08 | 12.34 | 41.86 | 15.64 | 309.95 | 0.3450 | 925.1 | 710.0 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 14.35 | 41.90 | 15.68 | 314.19 | 0.3667 | -793.0 | -516.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 13.95 | 41.65 | 15.43 | 313.83 | 0.3594 | -852.0 | -615.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 14.29 | 41.55 | 15.32 | 314.70 | 0.3619 | -843.0 | -731.1 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 13.64 | 40.12 | 13.90 | 316.11 | 0.3382 | 838.0 | 709.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
