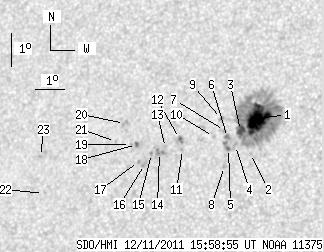

SDO HMI 2011-12-11 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.91 | 216.35 | 26.76 | 123.58 | 9.20 | 357.24 | -28.44 | 70.48 | 0.5007 | -601.5 | -315.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.87 | 176.34 | 20.97 | 100.27 | 9.40 | 357.80 | -27.87 | 69.81 | 0.4935 | -1227.1 | -414.2 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 8.36 | 357.65 | -28.02 | 71.93 | 0.4910 | -846.0 | -640.1 | |
| 5.70 | -1.00 | 3.26 | -1.00 | 9.04 | 357.25 | -28.42 | 70.82 | 0.4997 | -729.9 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.22 | 8.60 | 357.12 | -28.55 | 71.76 | 0.4996 | -612.0 | -638.8 | |
| 1.36 | 3.92 | 0.78 | 2.24 | 8.51 | 356.89 | -28.78 | 72.06 | 0.5026 | -669.8 | -557.0 | |
| 0.00 | 2.89 | 0.00 | 1.66 | 8.84 | 356.83 | -28.85 | 71.46 | 0.5049 | -860.0 | -743.7 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 9.05 | 356.71 | -28.97 | 71.13 | 0.5075 | -617.0 | -494.7 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 7.97 | 356.80 | -28.88 | 73.14 | 0.5018 | -644.0 | -474.4 | |
| 0.00 | 1.79 | 0.00 | 1.03 | 9.41 | 356.57 | -29.10 | 70.53 | 0.5110 | -799.0 | -601.4 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 8.87 | 356.35 | -29.33 | 71.66 | 0.5119 | -581.0 | -342.8 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 8.48 | 355.31 | -30.36 | 72.91 | 0.5251 | -403.0 | -431.1 | |
| 1.28 | 3.24 | 0.74 | 1.88 | 8.81 | 355.18 | -30.50 | 72.37 | 0.5283 | -706.9 | -643.6 | |
| 0.00 | 1.79 | 0.00 | 1.05 | 8.55 | 354.72 | -30.96 | 73.08 | 0.5338 | 589.0 | 502.1 | |
| 0.00 | 5.36 | 0.00 | 3.14 | 8.40 | 354.52 | -31.15 | 73.44 | 0.5361 | 858.0 | 805.7 | |
| 0.00 | 1.53 | 0.00 | 0.90 | 8.37 | 354.24 | -31.43 | 73.62 | 0.5399 | 839.0 | 731.6 | |
| 0.00 | 2.89 | 0.00 | 1.70 | 8.04 | 354.03 | -31.65 | 74.30 | 0.5418 | 647.0 | 584.7 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 8.13 | 353.81 | -31.87 | 74.24 | 0.5452 | 668.0 | 583.8 | |
| 1.70 | 2.13 | 1.01 | 1.26 | 8.64 | 353.69 | -31.98 | 73.38 | 0.5487 | 833.0 | 692.0 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 8.64 | 353.48 | -32.19 | 73.47 | 0.5516 | 804.0 | 703.9 | |
| 0.00 | 1.53 | 0.00 | 0.91 | 9.27 | 353.20 | -32.47 | 72.50 | 0.5578 | 686.0 | 599.8 | |
| 0.00 | 0.85 | 0.00 | 0.51 | 8.73 | 352.94 | -32.74 | 73.55 | 0.5595 | 645.0 | 432.5 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 7.19 | 350.49 | -35.18 | 77.09 | 0.5887 | 424.0 | 496.0 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 8.30 | 350.27 | -35.40 | 75.32 | 0.5948 | 592.0 | 534.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
