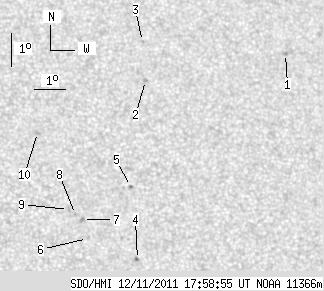

SDO HMI 2011-12-11 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.49 | 0.00 | 8.36 | 15.13 | 42.00 | 17.43 | 312.82 | 0.3958 | 652.6 | 508.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.13 | 0.00 | 1.21 | 18.49 | 47.57 | 23.00 | 311.13 | 0.4940 | 785.0 | 621.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 17.64 | 42.82 | 18.25 | 316.06 | 0.4319 | 837.0 | 688.8 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 18.85 | 42.85 | 18.28 | 318.01 | 0.4456 | 746.0 | 651.2 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 12.16 | 42.08 | 17.52 | 306.47 | 0.3675 | 1016.0 | 743.2 | |
| 0.00 | 1.70 | 0.00 | 0.91 | 14.38 | 42.03 | 17.46 | 311.27 | 0.3884 | -903.0 | -690.7 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 12.79 | 40.55 | 15.98 | 310.37 | 0.3540 | 639.0 | 524.5 | |
| 0.00 | 2.21 | 0.00 | 1.17 | 13.37 | 40.43 | 15.86 | 311.84 | 0.3585 | 881.0 | 698.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 13.52 | 40.22 | 15.65 | 312.53 | 0.3575 | 889.0 | 582.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 13.67 | 40.01 | 15.44 | 313.23 | 0.3566 | 885.0 | 749.9 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 16.02 | 39.20 | 14.63 | 319.36 | 0.3744 | 751.0 | 618.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
