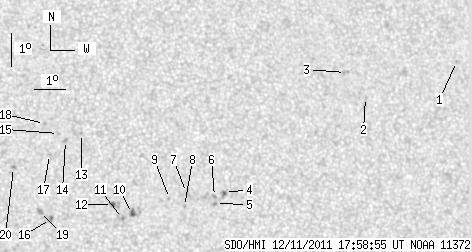

SDO HMI 2011-12-11 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.62 | 37.97 | 3.00 | 20.37 | 8.25 | 45.21 | 20.64 | 293.52 | 0.3811 | -26.3 | 26.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.71 | 11.78 | 55.73 | 31.16 | 292.55 | 0.5507 | -706.0 | -525.1 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 10.68 | 52.46 | 27.89 | 292.65 | 0.5001 | 470.0 | 499.2 | |
| 0.00 | 2.38 | 0.00 | 1.36 | 11.43 | 51.86 | 27.29 | 294.49 | 0.4958 | 669.0 | 645.2 | |
| 1.53 | 2.89 | 0.83 | 1.57 | 7.82 | 47.56 | 22.99 | 290.26 | 0.4142 | -770.8 | -669.4 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 7.49 | 47.25 | 22.68 | 289.73 | 0.4079 | -956.0 | -796.3 | |
| 0.00 | 1.87 | 0.00 | 1.02 | 7.70 | 47.23 | 22.66 | 290.24 | 0.4087 | -1083.0 | -788.9 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 7.82 | 46.33 | 21.77 | 291.24 | 0.3959 | -886.0 | -651.0 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 7.40 | 46.25 | 21.68 | 290.31 | 0.3923 | -798.0 | -636.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 7.64 | 45.78 | 21.21 | 291.29 | 0.3865 | -833.0 | -660.0 | |
| 2.64 | 4.09 | 1.40 | 2.17 | 7.19 | 44.58 | 20.01 | 291.24 | 0.3659 | -987.1 | -788.2 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 7.04 | 44.26 | 19.69 | 291.16 | 0.3601 | -1065.0 | -833.1 | |
| 1.45 | 5.36 | 0.77 | 2.84 | 7.46 | 43.96 | 19.39 | 292.54 | 0.3580 | -885.5 | -734.9 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 9.57 | 43.09 | 18.52 | 298.93 | 0.3595 | 721.0 | 598.1 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 9.36 | 42.58 | 18.01 | 299.07 | 0.3505 | 958.0 | 811.7 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 9.57 | 42.37 | 17.80 | 299.88 | 0.3492 | 922.0 | 598.8 | |
| 0.00 | 2.72 | 0.00 | 1.43 | 7.00 | 42.00 | 17.43 | 293.44 | 0.3255 | 825.0 | 727.4 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 8.94 | 42.05 | 17.48 | 298.68 | 0.3398 | 818.0 | 597.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 9.87 | 41.94 | 17.38 | 301.22 | 0.3456 | 855.0 | 646.5 | |
| 0.00 | 3.41 | 0.00 | 1.78 | 7.24 | 41.70 | 17.13 | 294.48 | 0.3224 | 1244.0 | 846.5 | |
| 0.00 | 1.96 | 0.00 | 1.02 | 8.55 | 40.91 | 16.34 | 299.22 | 0.3203 | 1023.0 | 809.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
