SDO HMI 2011-12-11 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.67 | 221.44 | 26.91 | 125.11 | 9.26 | 357.34 | -27.23 | 69.63 | 0.4836 | -780.8 | -326.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

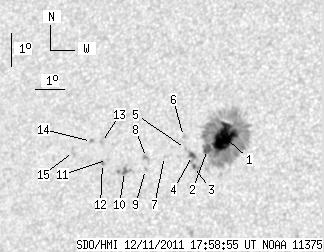

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.20 | 188.32 | 20.95 | 106.01 | 9.39 | 357.81 | -26.76 | 69.10 | 0.4775 | -1267.9 | -403.8 | |
| 5.19 | -1.00 | 2.94 | -1.00 | 9.03 | 357.27 | -27.30 | 70.16 | 0.4836 | -761.1 | 999999 | |
| 1.11 | 10.30 | 0.63 | 5.84 | 8.53 | 356.83 | -27.73 | 71.42 | 0.4875 | -746.2 | -623.4 | |
| 2.21 | -3.00 | 1.26 | -3.00 | 8.85 | 356.77 | -27.79 | 70.81 | 0.4899 | -793.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 9.07 | 356.52 | -28.05 | 70.55 | 0.4945 | -557.0 | -464.6 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 9.42 | 356.42 | -28.15 | 69.92 | 0.4975 | -664.0 | -484.5 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 8.83 | 355.83 | -28.74 | 71.41 | 0.5034 | -483.0 | -332.4 | |
| 0.00 | 2.30 | 0.00 | 1.32 | 8.80 | 355.21 | -29.36 | 71.80 | 0.5121 | -773.0 | -626.3 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 8.44 | 355.21 | -29.36 | 72.47 | 0.5107 | -635.0 | -468.2 | |
| 1.96 | 7.24 | 1.13 | 4.19 | 8.39 | 354.49 | -30.08 | 72.94 | 0.5207 | 881.0 | 754.6 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 8.75 | 353.87 | -30.70 | 72.58 | 0.5310 | 775.0 | 609.1 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 8.63 | 353.71 | -30.86 | 72.88 | 0.5328 | 910.0 | 807.9 | |
| 0.00 | 1.79 | 0.00 | 1.05 | 9.26 | 353.61 | -30.96 | 71.78 | 0.5366 | 767.0 | 553.1 | |
| 0.00 | 1.87 | 0.00 | 1.10 | 9.29 | 353.26 | -31.31 | 71.90 | 0.5417 | 807.0 | 691.1 | |
| 0.00 | 2.89 | 0.00 | 1.71 | 8.99 | 352.66 | -31.91 | 72.72 | 0.5490 | 308.0 | 516.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
