SDO HMI 2011-12-11 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.24 | 0.00 | 5.98 | 13.30 | 40.96 | 16.95 | 309.89 | 0.3715 | 424.1 | 408.7 | |
|
previous
or next observation for the same group /

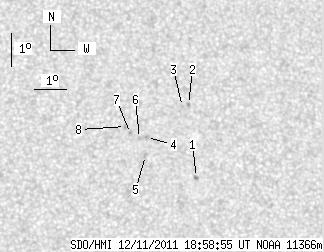

back to the solar disc SDO HMI 2011-12-11 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.05 | 12.15 | 42.13 | 18.12 | 305.57 | 0.3754 | 1012.0 | 668.7 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 14.37 | 42.05 | 18.04 | 310.37 | 0.3954 | -910.0 | -709.3 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 14.31 | 41.85 | 17.84 | 310.55 | 0.3924 | -822.0 | -635.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 13.36 | 40.64 | 16.62 | 310.54 | 0.3678 | 564.0 | 415.4 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 12.81 | 40.57 | 16.55 | 309.47 | 0.3614 | 847.0 | 636.2 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 13.33 | 40.41 | 16.40 | 310.85 | 0.3647 | 911.0 | 707.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 13.48 | 40.14 | 16.12 | 311.63 | 0.3629 | 924.0 | 775.8 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 13.69 | 39.99 | 15.98 | 312.33 | 0.3634 | 867.0 | 730.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
