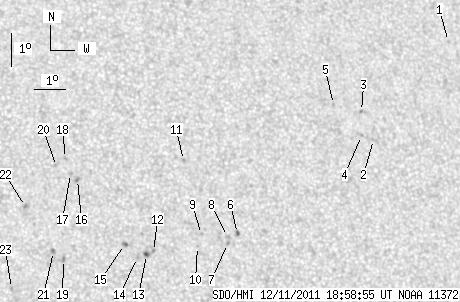

SDO HMI 2011-12-11 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.96 | 34.40 | 1.05 | 18.58 | 8.52 | 45.33 | 21.31 | 293.48 | 0.3926 | 14.0 | 46.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.56 | 13.59 | 55.32 | 31.31 | 295.53 | 0.5619 | -763.0 | -553.5 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 10.62 | 52.34 | 28.33 | 292.24 | 0.5059 | 814.0 | 645.4 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 11.46 | 52.02 | 28.01 | 294.02 | 0.5059 | 706.0 | 588.8 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 10.74 | 51.94 | 27.93 | 292.73 | 0.5010 | 759.0 | 738.2 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 11.67 | 51.09 | 27.08 | 295.09 | 0.4942 | 773.0 | 567.4 | |
| 0.51 | 2.21 | 0.28 | 1.21 | 7.79 | 47.59 | 23.57 | 289.75 | 0.4228 | -788.3 | -695.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 7.49 | 47.25 | 23.23 | 289.32 | 0.4162 | -906.0 | -732.9 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 7.70 | 47.26 | 23.24 | 289.79 | 0.4174 | -998.0 | -747.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 7.75 | 46.42 | 22.41 | 290.57 | 0.4051 | -900.0 | -790.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 7.40 | 46.27 | 22.26 | 289.84 | 0.4011 | -745.0 | -578.4 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 9.97 | 45.98 | 21.97 | 296.02 | 0.4117 | -740.0 | -697.0 | |
| 0.00 | 1.87 | 0.00 | 1.00 | 7.24 | 44.86 | 20.84 | 290.64 | 0.3788 | -895.0 | -710.5 | |
| 1.45 | 1.87 | 0.77 | 1.00 | 7.15 | 44.63 | 20.61 | 290.61 | 0.3749 | -1015.8 | -972.8 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 7.06 | 44.34 | 20.32 | 290.64 | 0.3700 | -976.0 | -801.1 | |
| 0.00 | 1.96 | 0.00 | 1.04 | 7.45 | 43.95 | 19.93 | 292.00 | 0.3662 | -985.0 | -880.0 | |
| 0.00 | 1.87 | 0.00 | 0.99 | 9.39 | 42.56 | 18.55 | 298.45 | 0.3585 | 1033.0 | 849.6 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 9.57 | 42.35 | 18.34 | 299.16 | 0.3568 | 738.0 | 543.6 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 10.02 | 42.22 | 18.20 | 300.45 | 0.3584 | 770.0 | 499.5 | |
| 0.00 | 2.21 | 0.00 | 1.16 | 7.00 | 42.01 | 17.99 | 292.79 | 0.3340 | 853.0 | 729.7 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 9.77 | 41.92 | 17.91 | 300.25 | 0.3523 | 555.0 | 493.0 | |
| 0.00 | 2.47 | 0.00 | 1.30 | 7.24 | 41.70 | 17.69 | 293.80 | 0.3309 | 1077.0 | 874.1 | |
| 0.00 | 2.13 | 0.00 | 1.12 | 8.58 | 40.89 | 16.87 | 298.54 | 0.3282 | 1079.0 | 796.4 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 6.13 | 40.36 | 16.34 | 292.15 | 0.3035 | 865.0 | 629.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
