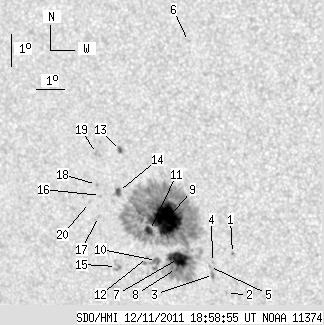

SDO HMI 2011-12-11 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.37 | 471.32 | 53.84 | 287.08 | -17.54 | 352.31 | -31.70 | 120.52 | 0.5840 | 891.7 | 344.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.51 | -18.27 | 354.56 | -29.46 | 123.36 | 0.5613 | 681.0 | 556.6 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -19.52 | 354.10 | -29.92 | 124.91 | 0.5755 | -770.0 | -587.1 | |
| 0.00 | 4.17 | 0.00 | 2.52 | -18.92 | 353.75 | -30.27 | 123.72 | 0.5755 | -159.0 | -191.7 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -18.55 | 353.78 | -30.23 | 123.18 | 0.5725 | 793.0 | 583.4 | |
| 0.00 | 1.28 | 0.00 | 0.77 | -18.68 | 353.65 | -30.36 | 123.27 | 0.5749 | 668.0 | 437.3 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -11.80 | 354.00 | -30.01 | 112.04 | 0.5303 | 674.0 | 502.1 | |
| 18.13 | 432.07 | 11.06 | 262.96 | -18.42 | 352.58 | -31.44 | 122.07 | 0.5862 | 1116.6 | 369.5 | |
| 0.77 | -7.00 | 0.47 | -7.00 | -18.73 | 352.44 | -31.58 | 122.44 | 0.5898 | 579.9 | 999999 | |
| 55.85 | -7.00 | 33.93 | -7.00 | -17.22 | 352.38 | -31.64 | 120.06 | 0.5811 | 1263.9 | 999999 | |
| 4.09 | 10.05 | 2.52 | 6.20 | -18.48 | 351.76 | -32.26 | 121.57 | 0.5964 | 688.4 | 452.6 | |
| 4.85 | -7.00 | 2.98 | -7.00 | -17.55 | 351.69 | -32.32 | 120.11 | 0.5916 | 802.3 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.63 | -18.39 | 351.44 | -32.57 | 121.21 | 0.5996 | 629.0 | 535.3 | |
| 1.19 | 2.89 | 0.73 | 1.76 | -15.09 | 351.09 | -32.92 | 115.86 | 0.5854 | -795.1 | -631.0 | |
| 3.49 | 4.60 | 2.15 | 2.83 | -16.35 | 350.79 | -33.23 | 117.66 | 0.5959 | 601.0 | 356.0 | |
| 0.00 | 5.02 | 0.00 | 3.15 | -18.66 | 350.23 | -33.79 | 120.81 | 0.6157 | 487.0 | 531.6 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -16.47 | 350.10 | -33.92 | 117.42 | 0.6051 | -343.0 | -419.1 | |
| 0.00 | 1.28 | 0.00 | 0.80 | -17.11 | 349.89 | -34.12 | 118.28 | 0.6111 | -817.0 | -607.0 | |
| 0.00 | 1.28 | 0.00 | 0.79 | -16.13 | 350.02 | -34.00 | 116.85 | 0.6043 | -766.0 | -600.4 | |
| 0.00 | 2.81 | 0.00 | 1.73 | -15.18 | 350.20 | -33.82 | 115.48 | 0.5972 | -760.0 | -685.1 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -16.68 | 349.65 | -34.37 | 117.48 | 0.6118 | -749.0 | -571.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
