SDO HMI 2011-12-11 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 18.81 | 0.59 | 10.12 | 14.14 | 41.20 | 17.74 | 310.21 | 0.3900 | 564.9 | 494.4 | |
|
previous
or next observation for the same group /

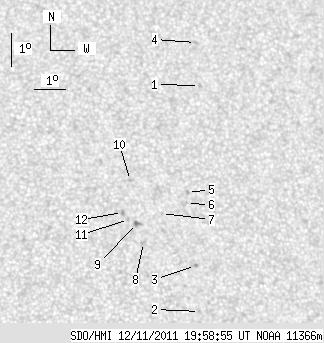

back to the solar disc SDO HMI 2011-12-11 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.71 | 17.63 | 42.79 | 19.33 | 314.47 | 0.4439 | 672.0 | 512.2 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 10.73 | 42.18 | 18.72 | 301.49 | 0.3715 | 778.0 | 621.7 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 12.12 | 42.15 | 18.69 | 304.69 | 0.3827 | 969.0 | 755.7 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 18.97 | 42.81 | 19.35 | 316.63 | 0.4583 | 817.0 | 594.1 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 14.34 | 42.07 | 18.61 | 309.46 | 0.4022 | -700.0 | -596.6 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 14.00 | 42.01 | 18.55 | 308.87 | 0.3982 | -584.0 | -529.8 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 13.69 | 41.19 | 17.73 | 309.48 | 0.3849 | 415.0 | 377.9 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 12.81 | 40.55 | 17.09 | 308.60 | 0.3682 | 1024.0 | 742.6 | |
| 1.11 | 2.89 | 0.59 | 1.54 | 13.39 | 40.37 | 16.91 | 310.13 | 0.3717 | 889.3 | 724.1 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 14.70 | 40.28 | 16.82 | 312.97 | 0.3841 | 811.0 | 586.3 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 13.51 | 40.12 | 16.66 | 310.79 | 0.3699 | 955.0 | 757.1 | |
| 0.00 | 1.87 | 0.00 | 1.00 | 13.72 | 39.95 | 16.49 | 311.53 | 0.3699 | 866.0 | 699.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
