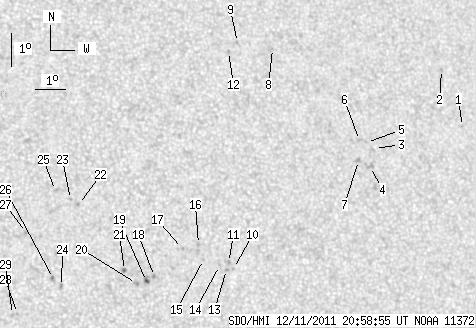

SDO HMI 2011-12-11 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 40.62 | 0.87 | 22.34 | 9.14 | 46.69 | 23.78 | 292.60 | 0.4322 | 46.0 | 67.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.51 | 11.84 | 55.79 | 32.88 | 291.69 | 0.5741 | -692.0 | -578.8 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 13.56 | 55.29 | 32.38 | 294.82 | 0.5758 | -755.0 | -648.2 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 11.16 | 52.60 | 29.69 | 292.37 | 0.5276 | 414.0 | 517.0 | |
| 0.00 | 2.47 | 0.00 | 1.43 | 10.62 | 52.40 | 29.49 | 291.51 | 0.5222 | 825.0 | 640.2 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 11.34 | 52.34 | 29.44 | 292.85 | 0.5250 | 513.0 | 414.5 | |
| 0.00 | 2.30 | 0.00 | 1.33 | 11.40 | 52.11 | 29.20 | 293.11 | 0.5221 | 715.0 | 542.1 | |
| 0.00 | 2.64 | 0.00 | 1.53 | 10.80 | 52.01 | 29.10 | 292.08 | 0.5176 | 853.0 | 733.9 | |
| 0.00 | 0.68 | 0.00 | 0.39 | 14.18 | 49.46 | 26.55 | 300.13 | 0.5031 | 639.0 | 481.6 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 14.36 | 48.30 | 25.39 | 301.50 | 0.4892 | 614.0 | 511.5 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 7.55 | 47.54 | 24.64 | 288.49 | 0.4376 | -661.0 | -534.1 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 7.72 | 47.39 | 24.48 | 288.98 | 0.4361 | -884.0 | -760.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 14.08 | 47.96 | 25.05 | 301.32 | 0.4828 | 801.0 | 601.2 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 7.52 | 47.31 | 24.40 | 288.57 | 0.4340 | -901.0 | -721.2 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 7.63 | 47.09 | 24.18 | 288.99 | 0.4312 | -637.0 | -492.6 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 7.81 | 46.58 | 23.67 | 289.75 | 0.4244 | -883.0 | -729.6 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 8.26 | 46.45 | 23.54 | 290.85 | 0.4247 | -823.0 | -670.4 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 8.14 | 45.92 | 23.01 | 290.99 | 0.4162 | -789.0 | -676.3 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 7.30 | 44.97 | 22.06 | 289.79 | 0.3976 | -948.0 | -769.1 | |
| 1.62 | 3.24 | 0.87 | 1.74 | 7.15 | 44.70 | 21.80 | 289.64 | 0.3929 | -934.6 | -879.6 | |
| 0.00 | 2.21 | 0.00 | 1.19 | 7.09 | 44.38 | 21.47 | 289.75 | 0.3876 | -872.0 | -739.4 | |
| 0.00 | 1.70 | 0.00 | 0.91 | 7.47 | 44.02 | 21.11 | 291.01 | 0.3842 | -1008.0 | -894.8 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 9.44 | 42.66 | 19.75 | 297.17 | 0.3764 | 902.0 | 745.8 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 9.59 | 42.42 | 19.51 | 297.81 | 0.3739 | 722.0 | 580.5 | |
| 0.00 | 2.13 | 0.00 | 1.13 | 6.99 | 42.00 | 19.09 | 291.65 | 0.3508 | 853.0 | 704.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 9.86 | 41.96 | 19.05 | 299.01 | 0.3693 | 638.0 | 472.2 | |
| 0.00 | 1.96 | 0.00 | 1.03 | 7.23 | 41.76 | 18.85 | 292.54 | 0.3485 | 1080.0 | 853.0 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 8.60 | 40.97 | 18.06 | 297.07 | 0.3458 | 819.0 | 727.3 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 6.19 | 40.59 | 17.68 | 290.84 | 0.3245 | 833.0 | 629.0 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 6.16 | 40.43 | 17.52 | 290.92 | 0.3219 | 772.0 | 599.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
