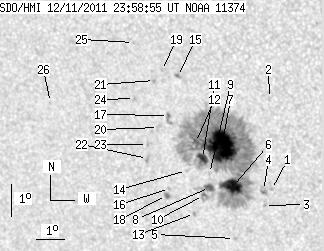

SDO HMI 2011-12-11 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.26 | 501.27 | 58.28 | 297.01 | -17.57 | 352.19 | -29.06 | 122.52 | 0.5515 | 800.5 | 346.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-11 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.75 | -18.62 | 353.89 | -27.36 | 125.66 | 0.5382 | 736.0 | 563.6 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -15.81 | 354.27 | -26.98 | 121.32 | 0.5131 | -523.0 | -396.1 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -19.12 | 353.56 | -27.70 | 126.15 | 0.5460 | -887.0 | -641.9 | |
| 0.00 | 5.19 | 0.00 | 3.06 | -18.65 | 353.60 | -27.65 | 125.45 | 0.5419 | 862.0 | 601.1 | |
| 0.00 | 1.28 | 0.00 | 0.77 | -20.14 | 352.29 | -28.97 | 126.61 | 0.5686 | -807.0 | -645.9 | |
| 17.46 | 446.32 | 10.37 | 264.10 | -18.52 | 352.53 | -28.72 | 124.32 | 0.5539 | 1126.3 | 390.0 | |
| 59.78 | -6.00 | 35.32 | -6.00 | -17.28 | 352.36 | -28.89 | 122.19 | 0.5473 | 1314.6 | 999999 | |
| 5.28 | 17.46 | 3.16 | 10.47 | -18.55 | 351.71 | -29.55 | 123.68 | 0.5640 | 698.4 | 330.1 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -18.12 | 351.79 | -29.47 | 123.06 | 0.5600 | 455.0 | 338.0 | |
| 1.36 | -8.00 | 0.82 | -8.00 | -18.80 | 351.44 | -29.81 | 123.85 | 0.5689 | 521.4 | 999999 | |
| 7.66 | -6.00 | 4.57 | -6.00 | -17.65 | 351.62 | -29.63 | 122.19 | 0.5589 | 719.2 | 999999 | |
| 2.98 | -6.00 | 1.78 | -6.00 | -17.16 | 351.46 | -29.79 | 121.27 | 0.5576 | 566.3 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.72 | -19.36 | 351.00 | -30.25 | 124.36 | 0.5780 | -644.0 | -572.8 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -18.02 | 350.98 | -30.27 | 122.28 | 0.5692 | 433.0 | 285.9 | |
| 0.00 | 2.13 | 0.00 | 1.26 | -15.13 | 351.16 | -30.09 | 117.72 | 0.5489 | -879.0 | -735.8 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -18.58 | 350.26 | -31.00 | 122.59 | 0.5816 | 535.0 | 519.2 | |
| 1.36 | 5.02 | 0.81 | 3.01 | -16.32 | 350.64 | -30.61 | 119.32 | 0.5627 | 636.6 | 446.5 | |
| 2.38 | 2.90 | 1.45 | 1.76 | -18.79 | 350.10 | -31.15 | 122.81 | 0.5849 | 594.8 | 516.8 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -14.95 | 350.62 | -30.63 | 117.04 | 0.5548 | -789.0 | -581.9 | |
| 0.00 | 2.73 | 0.00 | 1.64 | -16.69 | 350.22 | -31.03 | 119.61 | 0.5702 | -494.0 | -476.9 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -15.25 | 350.33 | -30.93 | 117.34 | 0.5604 | -850.0 | -739.7 | |
| 0.00 | 2.90 | 0.00 | 1.76 | -17.64 | 349.64 | -31.61 | 120.70 | 0.5832 | -883.0 | -734.9 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -17.21 | 349.72 | -31.53 | 120.09 | 0.5795 | -750.0 | -610.4 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -15.80 | 349.51 | -31.74 | 117.69 | 0.5739 | -705.0 | -550.2 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -14.09 | 349.76 | -31.49 | 115.05 | 0.5615 | -715.0 | -499.9 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -15.91 | 346.40 | -34.85 | 115.98 | 0.6136 | 549.0 | 490.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
