SDO HMI 2011-12-12 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.28 | 21.46 | 3.06 | 69.74 | 21.29 | 300.36 | -80.34 | 68.34 | 0.9875 | -96.1 | 13.1 | |
|
previous
or next observation for the same group /

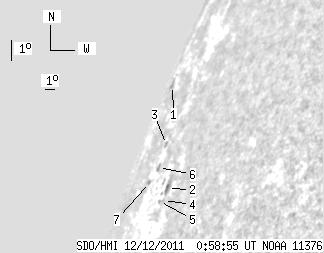

back to the solar disc SDO HMI 2011-12-12 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.00 | 0.00 | 23.71 | 23.33 | 296.30 | -84.40 | 66.53 | 0.9967 | 277.0 | 176.9 | |
| 1.28 | 9.62 | 3.06 | 22.97 | 19.97 | 303.66 | -77.04 | 69.46 | 0.9791 | -386.8 | -238.7 | |
| 0.00 | 1.79 | 0.00 | 5.57 | 21.39 | 300.81 | -79.89 | 68.23 | 0.9878 | 75.0 | 181.2 | |
| 0.00 | 0.77 | 0.00 | 1.82 | 19.59 | 303.69 | -77.01 | 69.84 | 0.9789 | -308.0 | -319.0 | |
| 0.00 | 1.11 | 0.00 | 2.73 | 19.57 | 303.15 | -77.55 | 69.91 | 0.9806 | -306.0 | -275.1 | |
| 0.00 | 2.64 | 0.00 | 7.95 | 20.66 | 300.95 | -79.76 | 68.96 | 0.9873 | 233.0 | 29.4 | |
| 0.00 | 1.53 | 0.00 | 4.99 | 20.19 | 300.27 | -80.43 | 69.48 | 0.9889 | 342.0 | 305.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
