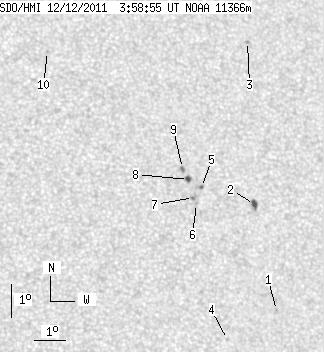

SDO HMI 2011-12-12 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.88 | 22.42 | 5.42 | 12.30 | 13.24 | 40.78 | 21.72 | 303.26 | 0.4340 | 530.1 | 530.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-12 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.51 | 9.46 | 42.66 | 23.60 | 293.56 | 0.4326 | 737.0 | 588.2 | |
| 3.75 | 4.69 | 2.07 | 2.59 | 12.66 | 42.21 | 23.15 | 300.60 | 0.4475 | -949.9 | -785.5 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 17.66 | 42.56 | 23.50 | 309.28 | 0.4929 | 829.0 | 675.3 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 8.59 | 41.01 | 21.95 | 293.05 | 0.4034 | 786.0 | 473.7 | |
| 1.19 | 2.90 | 0.65 | 1.59 | 13.17 | 40.52 | 21.46 | 303.47 | 0.4289 | 800.4 | 636.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 12.68 | 40.31 | 21.25 | 302.73 | 0.4222 | 890.0 | 593.5 | |
| 0.00 | 2.47 | 0.00 | 1.35 | 12.86 | 40.23 | 21.17 | 303.20 | 0.4226 | 1158.0 | 857.2 | |
| 2.98 | 3.66 | 1.63 | 2.00 | 13.41 | 40.12 | 21.06 | 304.44 | 0.4256 | 937.6 | 642.2 | |
| 1.96 | 3.07 | 1.07 | 1.68 | 13.74 | 39.95 | 20.89 | 305.30 | 0.4263 | 790.8 | 413.5 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 17.32 | 35.92 | 16.86 | 317.82 | 0.4141 | 725.0 | 534.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
