SDO HMI 2011-12-12 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.63 | 15.60 | 5.79 | 16.01 | -18.82 | 78.60 | 59.54 | 248.67 | 0.8777 | 38.4 | 48.6 | |
|
previous
or next observation for the same group /

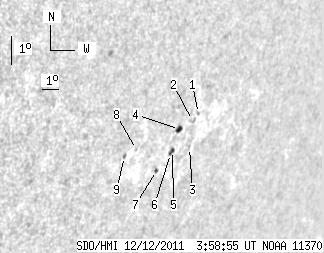

back to the solar disc SDO HMI 2011-12-12 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.53 | -18.00 | 79.74 | 60.68 | 249.81 | 0.8855 | 423.0 | 364.2 | |
| 0.00 | 2.39 | 0.00 | 2.51 | -18.21 | 79.49 | 60.43 | 249.52 | 0.8839 | 536.0 | 430.7 | |
| 0.00 | 0.94 | 0.00 | 1.00 | -19.05 | 79.80 | 60.74 | 248.64 | 0.8874 | 268.0 | 264.8 | |
| 2.90 | 3.75 | 2.99 | 3.86 | -18.50 | 78.84 | 59.78 | 249.08 | 0.8792 | 504.2 | 340.6 | |
| 1.36 | 3.07 | 1.41 | 3.17 | -19.15 | 78.78 | 59.72 | 248.34 | 0.8798 | -265.9 | -320.3 | |
| 0.26 | -5.00 | 0.26 | -5.00 | -19.25 | 78.72 | 59.66 | 248.22 | 0.8794 | -384.7 | 999999 | |
| 1.11 | 1.45 | 1.13 | 1.48 | -19.78 | 78.17 | 59.11 | 247.51 | 0.8760 | -427.1 | -419.5 | |
| 0.00 | 0.68 | 0.00 | 0.66 | -19.14 | 76.60 | 57.54 | 247.91 | 0.8623 | -271.0 | -299.0 | |
| 0.00 | 1.87 | 0.00 | 1.80 | -19.36 | 76.02 | 56.96 | 247.53 | 0.8579 | -669.0 | -490.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
