SDO HMI 2011-12-12 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.81 | 17.62 | 6.63 | 50.51 | 21.43 | 299.97 | -79.09 | 68.11 | 0.9842 | -8.0 | -29.8 | |
|
previous
or next observation for the same group /

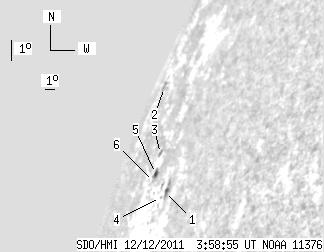

back to the solar disc SDO HMI 2011-12-12 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 6.81 | 2.91 | 14.49 | 19.99 | 303.46 | -75.60 | 69.31 | 0.9740 | -338.6 | -339.0 | |
| 0.00 | 3.83 | 0.00 | 18.35 | 23.38 | 295.93 | -83.13 | 66.42 | 0.9948 | 277.0 | 105.8 | |
| 0.00 | 1.70 | 0.00 | 4.55 | 21.22 | 300.71 | -78.35 | 68.29 | 0.9836 | 165.0 | 195.9 | |
| 0.00 | 1.11 | 0.00 | 2.43 | 19.80 | 303.08 | -75.98 | 69.53 | 0.9754 | -153.0 | -161.6 | |
| 1.45 | 3.15 | 3.72 | 8.09 | 20.58 | 301.11 | -77.95 | 68.91 | 0.9822 | 193.1 | 54.2 | |
| 0.00 | 1.02 | 0.00 | 2.60 | 20.32 | 301.25 | -77.81 | 69.16 | 0.9817 | -107.0 | -23.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
