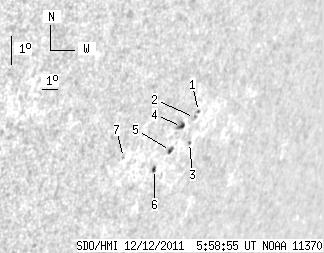

SDO HMI 2011-12-12 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.73 | 15.16 | 7.18 | 16.15 | -18.81 | 78.78 | 60.81 | 248.92 | 0.8874 | 134.4 | 196.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-12 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 1.12 | -17.96 | 79.81 | 61.84 | 250.05 | 0.8941 | 445.0 | 329.5 | |
| 0.00 | 1.19 | 0.00 | 1.30 | -18.15 | 79.66 | 61.69 | 249.82 | 0.8932 | 635.0 | 507.6 | |
| 0.34 | 1.02 | 0.38 | 1.13 | -18.93 | 79.82 | 61.85 | 248.98 | 0.8954 | 396.5 | 368.9 | |
| 2.73 | 5.71 | 2.92 | 6.10 | -18.43 | 78.98 | 61.01 | 249.39 | 0.8885 | 603.5 | 440.5 | |
| 1.96 | 2.98 | 2.09 | 3.18 | -19.18 | 78.73 | 60.77 | 248.51 | 0.8877 | -215.9 | -206.3 | |
| 1.70 | 2.13 | 1.79 | 2.23 | -19.78 | 78.09 | 60.12 | 247.72 | 0.8837 | -436.5 | -400.8 | |
| 0.00 | 1.11 | 0.00 | 1.09 | -19.42 | 75.96 | 58.00 | 247.70 | 0.8665 | -654.0 | -498.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
