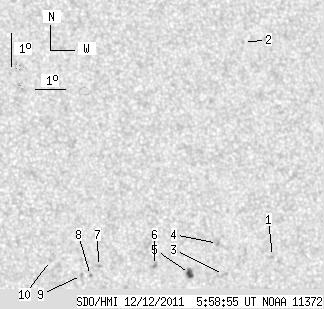

SDO HMI 2011-12-12 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.86 | 19.41 | 2.73 | 10.91 | 7.88 | 44.81 | 26.85 | 287.91 | 0.4722 | -193.4 | -137.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-12 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.89 | 7.78 | 48.14 | 30.18 | 286.01 | 0.5202 | -729.0 | -478.2 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 14.23 | 47.86 | 29.90 | 297.66 | 0.5476 | 742.0 | 498.5 | |
| 0.00 | 1.96 | 0.00 | 1.11 | 7.23 | 46.43 | 28.46 | 285.78 | 0.4933 | -730.0 | -614.8 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 8.16 | 46.29 | 28.32 | 287.67 | 0.4949 | -942.0 | -737.3 | |
| 4.86 | 5.11 | 2.73 | 2.88 | 7.26 | 45.28 | 27.32 | 286.42 | 0.4765 | -975.9 | -843.0 | |
| 0.00 | 2.81 | 0.00 | 1.57 | 7.49 | 44.13 | 26.16 | 287.55 | 0.4604 | -1020.0 | -803.1 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 7.45 | 42.28 | 24.32 | 288.64 | 0.4327 | 706.0 | 629.3 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 7.18 | 42.01 | 24.04 | 288.22 | 0.4273 | 788.0 | 626.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 7.18 | 41.71 | 23.75 | 288.42 | 0.4229 | 785.0 | 557.6 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 7.63 | 40.73 | 22.77 | 290.16 | 0.4103 | 796.0 | 548.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
