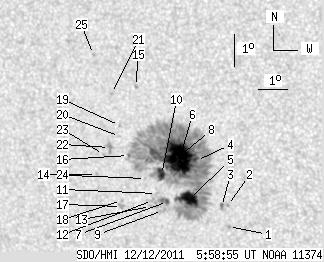

SDO HMI 2011-12-12 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.40 | 485.50 | 45.65 | 279.35 | -17.66 | 352.23 | -25.74 | 125.56 | 0.5108 | 904.8 | 382.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-12 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.83 | -19.46 | 353.73 | -24.24 | 130.05 | 0.5078 | -732.0 | -531.0 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -18.80 | 353.80 | -24.17 | 129.06 | 0.5013 | 810.0 | 633.1 | |
| 0.00 | 2.56 | 0.00 | 1.46 | -18.83 | 353.59 | -24.38 | 128.89 | 0.5040 | 891.0 | 686.3 | |
| 0.77 | 445.71 | 0.44 | 256.19 | -17.40 | 352.95 | -25.02 | 125.83 | 0.4999 | 1248.9 | 415.5 | |
| 15.76 | -4.00 | 9.09 | -4.00 | -18.58 | 352.52 | -25.44 | 127.37 | 0.5145 | 1192.4 | 999999 | |
| 52.56 | -4.00 | 30.15 | -4.00 | -17.34 | 352.37 | -25.60 | 125.16 | 0.5064 | 1376.2 | 999999 | |
| 2.04 | 8.18 | 1.19 | 4.76 | -18.67 | 351.75 | -26.22 | 126.75 | 0.5245 | 699.2 | 637.6 | |
| 0.77 | -4.00 | 0.44 | -4.00 | -17.62 | 351.85 | -26.12 | 125.11 | 0.5150 | 644.4 | 999999 | |
| 0.00 | 3.41 | 0.00 | 1.99 | -18.95 | 351.53 | -26.44 | 126.99 | 0.5294 | 25.0 | 59.2 | |
| 6.56 | -4.00 | 3.79 | -4.00 | -17.83 | 351.68 | -26.29 | 125.31 | 0.5188 | 738.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -18.42 | 351.41 | -26.56 | 126.02 | 0.5267 | 683.0 | 479.5 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -18.64 | 351.23 | -26.74 | 126.21 | 0.5305 | 513.0 | 454.5 | |
| 0.00 | 1.87 | 0.00 | 1.10 | -18.82 | 351.13 | -26.84 | 126.41 | 0.5331 | 586.0 | 344.6 | |
| 0.00 | 0.85 | 0.00 | 0.50 | -17.95 | 351.10 | -26.87 | 124.97 | 0.5268 | 379.0 | 304.3 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -15.13 | 351.18 | -26.79 | 120.21 | 0.5055 | -863.0 | -577.2 | |
| 0.94 | -4.00 | 0.55 | -4.00 | -17.24 | 350.63 | -27.34 | 123.37 | 0.5274 | 422.3 | 999999 | |
| 0.00 | 2.90 | 0.00 | 1.71 | -18.82 | 350.11 | -27.86 | 125.47 | 0.5453 | 856.0 | 606.7 | |
| 0.00 | 1.19 | 0.00 | 0.70 | -18.63 | 350.14 | -27.83 | 125.21 | 0.5435 | 785.0 | 529.9 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -16.32 | 350.46 | -27.51 | 121.67 | 0.5230 | 539.0 | 396.3 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -16.66 | 350.41 | -27.56 | 122.19 | 0.5260 | 356.0 | 253.1 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -15.34 | 350.33 | -27.64 | 119.87 | 0.5181 | -821.0 | -665.5 | |
| 0.00 | 6.05 | 0.00 | 3.54 | -16.99 | 350.00 | -27.97 | 122.41 | 0.5334 | -1048.0 | -706.1 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -17.21 | 349.76 | -28.21 | 122.56 | 0.5380 | -817.0 | -617.8 | |
| 0.00 | 1.19 | 0.00 | 0.70 | -17.83 | 349.40 | -28.56 | 123.27 | 0.5466 | -800.0 | -653.8 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -14.15 | 349.87 | -28.10 | 117.41 | 0.5166 | -859.0 | -701.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
